Sản phẩm / Phớt Xi lanh - Hydraulic Cylinder Seals / Phớt chắn bụi-Wiper seals

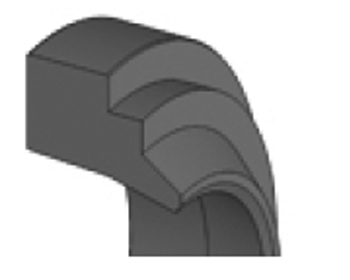

A01
MÔ TẢ:
-Dùng cho xi lanh thủy lực. Làm kín và gạt bụi bề mặt trục.
-Thiết kế phớt lắp căng trên bích (hoặc gối), có nắp chặn.
ĐIỀU KIỆN LÀM VIỆC:
|
Vật liệu chế tạo |
Nhiệt độ làm việc |
Vận tốc (max) |
|
PU |
-30...+110˚C |
4,0 m/s |
|
HPU |
-20...+110˚C |
4,0 m/s |
|
SPU |
-20...+110˚C |
5,0 m/s |
|
NBR |
-30...+100˚C |
4,0 m/s |
|
FKM |
-20...+200˚C |
4,0 m/s |
|
EPDM |
-50...+150˚C |
4,0 m/s |
-Lựa chọn vật liệu theo môi trường làm việc tại mục VẬT LIỆU
Đặt hàng:
Chi tiết sản phẩm
 |

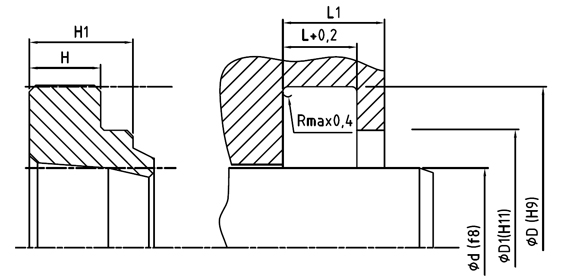

| KÍCH THƯỚC RÃNH • Housing dimensions | KÍCH THƯỚC RÃNH • Housing dimensions | |||||||||||
| GPVA Code | d | D | D1 | H1 | L | GPVA Code | d | D | D1 | H1 | L | |
| A01B.4x12/10x4/7 | 4,0 | 12,0 | 10,0 | 7,0 | 4,0 | A01B.85x93/91x4/7 | 85,0 | 93,0 | 91,0 | 7,0 | 4,0 | |
| A01B.8x16/14x4/7 | 8,0 | 16,0 | 14,0 | 7,0 | 4,0 | A01B.86x94/92x4/7 | 86,0 | 94,0 | 92,0 | 7,0 | 4,0 | |
| A01B.10x18/16x4/7 | 10,0 | 18,0 | 16,0 | 7,0 | 4,0 | A01B.88x96/94x4/7 | 88,0 | 96,0 | 94,0 | 7,0 | 4,0 | |
| A01B.12x20/18x4/7 | 12,0 | 20,0 | 18,0 | 7,0 | 4,0 | A01B.90x98/96x4/7 | 90,0 | 98,0 | 96,0 | 7,0 | 4,0 | |
| A01B.14x22/20x4/7 | 14,0 | 22,0 | 20,0 | 7,0 | 4,0 | A01B.93x101/99x4/7 | 93,0 | 101,0 | 99,0 | 7,0 | 4,0 | |
| A01B.15x23/21x4/7 | 15,0 | 23,0 | 21,0 | 7,0 | 4,0 | A01B.95x103/101x4/7 | 95,0 | 103,0 | 101,0 | 7,0 | 4,0 | |
| A01B.16x24/22x4/7 | 16,0 | 24,0 | 22,0 | 7,0 | 4,0 | A01B.97x105/103x4/7 | 97,0 | 105,0 | 103,0 | 7,0 | 4,0 | |
| A01B.17x25/23x4/7 | 17,0 | 25,0 | 23,0 | 7,0 | 4,0 | A01B.100x108/106x4/7 | 100,0 | 108,0 | 106,0 | 7,0 | 4,0 | |
| A01B.18x26/24x4/7 | 18,0 | 26,0 | 24,0 | 7,0 | 4,0 | A01B.102x114/111x5.5/10 | 102,0 | 114,0 | 111,0 | 10,0 | 5.5 | |
| A01B.20x28/26x4/7 | 20,0 | 28,0 | 26,0 | 7,0 | 4,0 | A01B.106x118/115x5.5/10 | 106,0 | 118,0 | 115,0 | 10,0 | 5.5 | |
| A01B.22x30/28x4/7 | 22,0 | 30,0 | 28,0 | 7,0 | 4,0 | A01B.110x118/116x4/7 | 110,0 | 118,0 | 116,0 | 7,0 | 4,0 | |
| A01B.23x31/29x4/7 | 23,0 | 31,0 | 29,0 | 7,0 | 4,0 | A01B.110x122/119x5.5/10 | 110,0 | 122,0 | 119,0 | 10,0 | 5.5 | |
| A01B.24x32/30x4/7 | 24,0 | 32,0 | 30,0 | 7,0 | 4,0 | A01B.113x121/119x4/7 | 113,0 | 121,0 | 119,0 | 7,0 | 4,0 | |
| A01B.25x33/31x4/7 | 25,0 | 33,0 | 31,0 | 7,0 | 4,0 | A01B.114x122/120x4/7 | 114,0 | 122,0 | 120,0 | 7,0 | 4,0 | |
| A01B.25x34/32x5/8 | 25,0 | 34,0 | 32,0 | 8,0 | 5,0 | A01B.115x127/124x5.5/10 | 115,0 | 127,0 | 124,0 | 10,0 | 5.5 | |
| A01B.26x34/32x4/7 | 26,0 | 34,0 | 32,0 | 7,0 | 4,0 | A01B.118x130/127x5.5/10 | 118,0 | 130,0 | 127,0 | 10,0 | 5.5 | |
| A01B.28x36/34x4/7 | 28,0 | 36,0 | 34,0 | 7,0 | 4,0 | A01B.120x132/129x5.5/10 | 120,0 | 132,0 | 129,0 | 10,0 | 5.5 | |
| A01B.30x38/36x4/7 | 30,0 | 38,0 | 36,0 | 7,0 | 4,0 | A01B.125x137/134x5.5/10 | 125,0 | 137,0 | 134,0 | 10,0 | 5.5 | |
| A01B.32x40/38x4/7 | 32,0 | 40,0 | 38,0 | 7,0 | 4,0 | A01B.128x140/137x5.5/10 | 128,0 | 140,0 | 137,0 | 10,0 | 5.5 | |
| A01B.33x41/39x4/7 | 33,0 | 41,0 | 39,0 | 7,0 | 4,0 | A01B.130x142/139x5.5/10 | 130,0 | 142,0 | 139,0 | 10,0 | 5.5 | |
| A01B.34x42/40x4/7 | 34,0 | 42,0 | 40,0 | 7,0 | 4,0 | A01B.131x139/137x4/7 | 131,0 | 139,0 | 137,0 | 7,0 | 4,0 | |
| A01B.35x43/41x4/7 | 35,0 | 43,0 | 41,0 | 7,0 | 4,0 | A01B.135x147/144x5.5/10 | 135,0 | 147,0 | 144,0 | 10,0 | 5.5 | |
| A01B.36x44/42x4/7 | 36,0 | 44,0 | 42,0 | 7,0 | 4,0 | A01B.140x152/149x5.5/10 | 140,0 | 152,0 | 149,0 | 10,0 | 5.5 | |
| A01B.38x46/44x4/7 | 38,0 | 46,0 | 44,0 | 7,0 | 4,0 | A01B.145x157/154x5.5/10 | 145,0 | 157,0 | 154,0 | 10,0 | 5.5 | |
| A01B.40x48/46x4/7 | 40,0 | 48,0 | 46,0 | 7,0 | 4,0 | A01B.149x157/155x4/7 | 149,0 | 157,0 | 155,0 | 7,0 | 4,0 | |
| A01B.40x50/48x5/8.5 | 40,0 | 50,0 | 48,0 | 8.5 | 5,0 | A01B.150x162/159x5.5/10 | 150,0 | 162,0 | 159,0 | 10,0 | 5.5 | |
| A01B.42x50/48x4/7 | 42,0 | 50,0 | 48,0 | 7,0 | 4,0 | A01B.152x164/161x5.5/10 | 152,0 | 164,0 | 161,0 | 10,0 | 5.5 | |
| A01B.44x52/50x4/7 | 44,00 | 52,00 | 50,00 | 7,00 | 4,0 | A01B.155x167/164x5.5/10 | 155,0 | 167,0 | 164,0 | 10,0 | 5.5 | |
| A01B.45x53/51x4/7 | 45,0 | 53,0 | 51,0 | 7,0 | 4,0 | A01B.160x172/169x5.5/10 | 160,0 | 172,0 | 169,0 | 10,0 | 5.5 | |
| A01B.47x58/56x5/8 | 47,0 | 58,0 | 56,0 | 8,0 | 5,0 | A01B.165x177/174x5.5/10 | 165,0 | 177,0 | 174,0 | 10,0 | 5.5 | |
| A01B.48x56/54x4/7 | 48,0 | 56,0 | 54,0 | 7,0 | 4,0 | A01B.166x178/175x5.5/10 | 166,0 | 178,0 | 175,0 | 10,0 | 5.5 | |
| A01B.50x58/56x4/7 | 50,0 | 58,0 | 56,0 | 7,0 | 4,0 | A01B.168x176/174x4/7 | 168,0 | 176,0 | 174,0 | 7,0 | 4,0 | |
| A01B.50x62/59x5.5/10 | 50,0 | 62,0 | 59,0 | 10,0 | 5.5 | A01B.170x182/179x5.5/10 | 170,0 | 182,0 | 179,0 | 10,0 | 5.5 | |
| A01B.54x62/60x4/7 | 54,0 | 62,0 | 60,0 | 7,0 | 4,0 | A01B.175x187/184x5.5/10 | 175,0 | 187,0 | 184,0 | 10,0 | 5.5 | |
| A01B.55x63/61x4/7 | 55,0 | 63,0 | 61,0 | 7,0 | 4,0 | A01B.180x192/189x5.5/10 | 180,0 | 192,0 | 189,0 | 10,0 | 5.5 | |
| A01B.55x65/x6/8.5 | 55,0 | 65,0 | 8.5 | 6,0 | ||||||||
| A01B.56x64/62x4/7 | 56,0 | 64,0 | 62,0 | 7,0 | 4,0 | A01B.180x192x10/16 | 180,0 | 192,0 | 16,0 | 10,0 | ||
| A01B.57x65/63x4/7 | 57,0 | 65,0 | 63,0 | 7,0 | 4,0 | A01B.185x197/194x5.5/10 | 185,0 | 197,0 | 194,0 | 10,0 | 5.5 | |
| A01B.58x66/64x4/7 | 58,0 | 66,0 | 64,0 | 7,0 | 4,0 | A01B.188x196/194x4/7 | 188,0 | 196,0 | 194,0 | 7,0 | 4,0 | |
| A01B.60x68/66x4/7 | 60,0 | 68,0 | 66,0 | 7,0 | 4,0 | A01B.190x202/199x5.5/10 | 190,0 | 202,0 | 199,0 | 10,0 | 5.5 | |
| A01B.195x207/204x5.5/10 | 195,0 | 207,0 | 204,0 | 10,0 | 5.5 | |||||||
| A01B.60x72/69x5.5/10 | 60,0 | 72,0 | 69,0 | 10,0 | 5.5 | |||||||
| A01B.62x70/68x4/7 | 62,0 | 70,0 | 68,0 | 7,0 | 4,0 | A01B.200x212/209x5.5/10 | 200,0 | 212,0 | 209,0 | 10,0 | 5.5 | |
| A01B.63x71/69x4/7 | 63,0 | 71,0 | 69,0 | 7,0 | 4,0 | A01B.210x218/216x4/7 | 210,0 | 218,0 | 216,0 | 7,0 | 4,0 | |
| A01B.63x73/x5/7 | 63,0 | 73,0 | 7,0 | 5,0 | A01B.210x225/222x6.5/13 | 210,0 | 225,0 | 222,0 | 13,0 | 6.5 | ||
| A01B.64x72/70x4/7 | 64,0 | 72,0 | 70,0 | 7,0 | 4,0 | A01B.210x230x14.5 | 210,0 | 230,0 | 14.5 | |||
| A01B.220x235/232x6.5/13 | 220,0 | 235,0 | 232,0 | 13,0 | 6.5 | |||||||
| A01B.65x73/71x4/7 | 65,0 | 73,0 | 71,0 | 7,0 | 4,0 | |||||||
| A01B.66x74/72x4/7 | 66,0 | 74,0 | 72,0 | 7,0 | 4,0 | A01B.220x235x13/18 | 220,0 | 235,0 | 18,0 | 13,0 | ||
| A01B.67x75/73x4/7 | 67,0 | 75,0 | 73,0 | 7,0 | 4,0 | A01B.240x248x5.5/10 | 240,0 | 248,0 | 10,0 | 5.5 | ||
| A01B.68x76/74x4/7 | 68,0 | 76,0 | 74,0 | 7,0 | 4,0 | A01B.240x255/251x6.5/13 | 240,0 | 255,0 | 251,0 | 13,0 | 6.5 | |
| A01B.70x78/76x4/7 | 70,0 | 78,0 | 76,0 | 7,0 | 4,0 | A01B.250x265/262x6.5/13 | 250,0 | 265,0 | 262,0 | 13,0 | 6.5 | |
| A01B.300x315/311x6.5/13 | 300,0 | 315,0 | 311,0 | 13,0 | 6.5 | |||||||
| A01B.73x81/79x4/7 | 73,0 | 81,0 | 79,0 | 7,0 | 4,0 | |||||||
| A01B.75x83/81x4/7 | 75,0 | 83,0 | 81,0 | 7,0 | 4,0 | A01B.330x345x6.5/13 | 330,0 | 345,0 | 13,0 | 6.5 | ||
| A01B.78x86/84x4/7 | 78,0 | 86,0 | 84,0 | 7,0 | 4,0 | A01B.420x435x6.5/13 | 420,0 | 435,0 | 13,0 | 6.5 | ||
| A01B.80x88/86x4/7 | 80,0 | 88,0 | 86,0 | 7,0 | 4,0 | |||||||
| A01B.83x91/89x4/7 | 83,0 | 91,0 | 89,0 | 7,0 | 4,0 | |||||||
