Sản phẩm / Phớt Xi lanh - Hydraulic Cylinder Seals / Phớt chắn bụi-Wiper seals

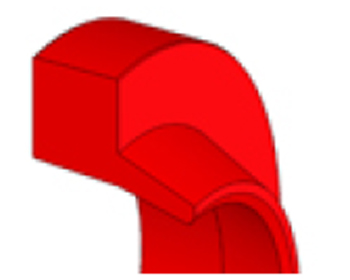

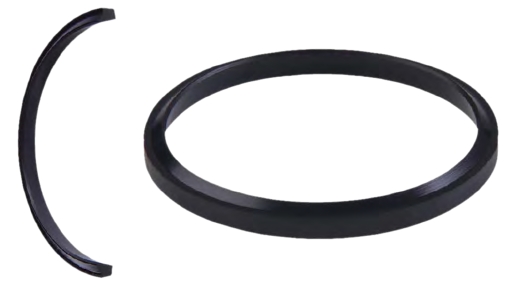

A02
MÔ TẢ:
-Dùng cho xi lanh thủy lực. Làm kín và gạt bụi bề mặt trục.
-Thiết kế phớt lắp căng trên bích (hoặc gối), có nắp chặn.
ĐIỀU KIỆN LÀM VIỆC:
|
Vật liệu chế tạo |
Nhiệt độ làm việc |
Vận tốc (max) |
|
PU |
-30...+110˚C |
4,0 m/s |
|
HPU |
-20...+110˚C |
4,0 m/s |
|
SPU |
-20...+110˚C |
5,0 m/s |
|
NBR |
-30...+100˚C |
4,0 m/s |
|
FKM |
-20...+200˚C |
4,0 m/s |
|
EPDM |
-50...+150˚C |
4,0 m/s |
-Lựa chọn vật liệu theo môi trường làm việc tại mục VẬT LIỆU
Đặt hàng:
Chi tiết sản phẩm
 |
|

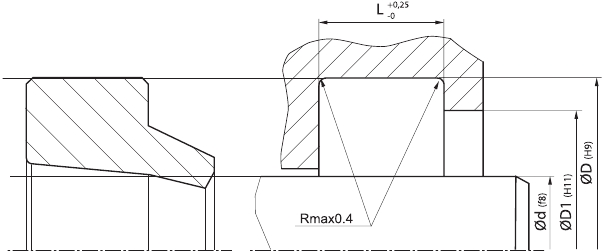

| KÍCH THƯỚC RÃNH • Housing dimensions | KÍCH THƯỚC RÃNH • Housing dimensions | |||||||||||||
| GPVA Code | d | Dn | D | D1 | H | L | GPVA Code | d | Dn | D | D1 | H | L | |
| A02B.12x18.6/14x3.8/5.5 | 12,0 | 18,0 | 18.6 | 14,0 | 5.5 | 3.8 | A02B.85x93.6/88x5.3/7 | 85,0 | 93,0 | 93.6 | 88,0 | 7,0 | 5.3 | |
| A02B.15x21.6/18x3.8/5.5 | 15,0 | 21,0 | 21.6 | 18,0 | 5.5 | 3.8 | A02B.85x97.2/91x7.2/12 | 85,0 | 97,0 | 97.2 | 91,0 | 12,0 | 7.2 | |
| A02B.16x22.6/19x3.7/5.5 | 16,0 | 22,0 | 22.6 | 19,0 | 5.5 | 3.7 | A02B.88x100.2/94x7.2/12 | 88,0 | 100,0 | 100.2 | 94,0 | 12,0 | 7.2 | |
| A02B.18x24.6/21x3.8/5.5 | 18,0 | 24,0 | 24.6 | 21,0 | 5.5 | 3.8 | A02B.90x100.6/93x7.2/12 | 90,0 | 100,0 | 100.6 | 93,0 | 12,0 | 7.2 | |
| A02B.18x30.6/21x5.3/7 | 18,0 | 30,0 | 30.6 | 21,0 | 7,0 | 5.3 | A02B.90x102.2/96x7.2/12 | 90,0 | 102,0 | 102.2 | 96,0 | 12,0 | 7.2 | |
| A02B.19x28.4/23x5.3/7 | 19,0 | 28,0 | 28.4 | 23,0 | 7,0 | 5.3 | A02B.95x103.6/98x5.3/7 | 95,0 | 103,0 | 103.6 | 98,0 | 7,0 | 5.3 | |
| A02B.20x28.6/23x5.3/7 | 20,0 | 28,0 | 28.6 | 23,0 | 7,0 | 5.3 | A02B.95x107.2/101x7.2/12 | 95,0 | 107,0 | 107.2 | 101,0 | 12,0 | 7.2 | |
| A02B.22x30.6/25x5.3/7 | 22,0 | 30,0 | 30.6 | 25,0 | 7,0 | 5.3 | A02B.100x108.6/103x5.3/7 | 100,0 | 108,0 | 108.6 | 103,0 | 7,0 | 5.3 | |
| A02B.24x32.6/27x5.3/7 | 24,0 | 32,0 | 32.6 | 27,0 | 7,0 | 5.3 | A02B.100x112.2/106x7.2/12 | 100,0 | 112,0 | 112.2 | 106,0 | 12,0 | 7.2 | |
| A02B.25x33.6/28x5.3/7 | 25,0 | 33,0 | 33.6 | 28,0 | 7,0 | 5.3 | A02B.103x115.2/109x7.2/12 | 103,0 | 115,0 | 115.2 | 109,0 | 12,0 | 7.2 | |
| A02B.27x35.6/30x5.3/7 | 27,0 | 35,0 | 35.6 | 30,0 | 7,0 | 5.3 | A02B.105x113.6/108x5.3/7 | 105,0 | 113,0 | 113.6 | 108,0 | 7,0 | 5.3 | |
| A02B.28x36.6/31x5.3/7 | 28,0 | 36,0 | 36.6 | 31,0 | 7,0 | 5.3 | A02B.105x117.2/111x7.2/12 | 105,0 | 117,0 | 117.2 | 111,0 | 12,0 | 7.2 | |
| A02B.30x38.6/33x5.3/7 | 30,0 | 38,0 | 38.6 | 33,0 | 7,0 | 5.3 | A02B.110x118.6/113x5.3/7 | 110,0 | 118,0 | 118.6 | 113,0 | 7,0 | 5.3 | |
| A02B.32x40.6/35x5.3/7 | 32,0 | 40,0 | 40.6 | 35,0 | 7,0 | 5.3 | A02B.110x122.2/116x7.2/12 | 110,0 | 122,0 | 122.2 | 116,0 | 12,0 | 7.2 | |
| A02B.33x42.6/36x5.3/7 | 33,0 | 42,0 | 42.6 | 36,0 | 7,0 | 5.3 | A02B.115x123.2/118x5.3/7 | 115,0 | 123,0 | 123.2 | 118,0 | 7,0 | 5.3 | |
| A02B.35x43.6/38x5.3/7 | 35,0 | 43,0 | 43.6 | 38,0 | 7,0 | 5.3 | A02B.115x125.6/118x5.3/7 | 115,0 | 125,0 | 125.6 | 118,0 | 7,0 | 5.3 | |
| A02B.35x47.6/38x5.3/7 | 35,0 | 47,0 | 47.6 | 38,0 | 7,0 | 5.3 | A02B.115x127.2/121x7.2/12 | 115,0 | 127,0 | 127.2 | 121,0 | 12,0 | 7.2 | |
| A02B.35x47.2/38x4.3/7 | 35,0 | 47,0 | 47.2 | 38,0 | 7,0 | 4.3 | A02B.120x128.6/123x5.3/7 | 120,0 | 128,0 | 128.6 | 123,0 | 7,0 | 5.3 | |
| A02B.36x44.6/39x5.3/7 | 36,0 | 44,0 | 44.6 | 39,0 | 7,0 | 5.3 | A02B.120x132.2/126x7.2/12 | 120,0 | 132,0 | 132.2 | 126,0 | 12,0 | 7.2 | |
| A02B.38x46.6/41x5.3/7 | 38,0 | 46,0 | 46.6 | 41,0 | 7,0 | 5.3 | A02B.125x133.6/128x5.3/7 | 125,0 | 133,0 | 133.6 | 128,0 | 7,0 | 5.3 | |
| A02B.40x48.6/43x5.3/7 | 40,0 | 48,0 | 48.6 | 43,0 | 7,0 | 5.3 | A02B.125x137.2/131x7.2/12 | 125,0 | 137,0 | 137.2 | 131,0 | 12,0 | 7.2 | |
| A02B.40x52.2/46x6.3/8 | 40,0 | 52,0 | 52.2 | 46,0 | 8,0 | 6.3 | A02B.125x140/132.5x10.2/16 | 125,0 | 140,0 | 140,0 | 132.5 | 16,0 | 10.2 | |
| A02B.42x50.6/45x5.3/7 | 42,0 | 50,0 | 50.6 | 45,0 | 7,0 | 5.3 | A02B.130x142.6/136x7.2/12 | 130,0 | 142,0 | 142.6 | 136,0 | 12,0 | 7.2 | |
| A02B.45x53.6/48x5.3/7 | 45,0 | 53,0 | 53.6 | 48,0 | 7,0 | 5.3 | A02B.135x147/141x7.2/12 | 135,0 | 147,0 | 147,0 | 141,0 | 12,0 | 7.2 | |
| A02B.45x55.6/48x5.3/7 | 45,0 | 55,0 | 55.6 | 48,0 | 7,0 | 5.3 | A02B.135x149.2/141x7.2/12 | 135,0 | 149,0 | 149.2 | 141,0 | 12,0 | 7.2 | |
| A02B.46x54.6/49x5.3/7 | 46,0 | 54,0 | 54.6 | 49,0 | 7,0 | 5.3 | A02B.140x152.2/146x7.1/12 | 140,0 | 152,0 | 152.2 | 146,0 | 12,0 | 7.1 | |
| A02B.48x56.6/51x5.3/7 | 48,0 | 56,0 | 56.6 | 51,0 | 7,0 | 5.3 | A02B.140x155.6/147.5x10.2/16 | 140,0 | 155,0 | 155.6 | 147.5 | 16,0 | 10.2 | |
| A02B.50x58.6/53x5.3/7 | 50,00 | 58,00 | 58.6 | 53,00 | 7,0 | 5.3 | A02B.150x165.6/157.5x10.2/16 | 150,0 | 165,0 | 165.6 | 157.5 | 16,0 | 10.2 | |
| A02B.50x60.6/53x5.3/7 | 50,0 | 60,0 | 60.6 | 53,0 | 7,0 | 5.3 | A02B.155x167.2/161x7.2/12 | 155,0 | 167,0 | 167.2 | 161,0 | 12,0 | 7.2 | |
| A02B.53x61.6/56x5.3/7 | 53,0 | 61,0 | 61.6 | 56,0 | 7,0 | 5.3 | A02B.160x175.6/167.5x10.2/16 | 160,0 | 175,0 | 175.6 | 167.5 | 16,0 | 10.2 | |
| A02B.55x63.6/58x5.3/7 | 55,0 | 63,0 | 63.6 | 58,0 | 7,0 | 5.3 | A02B.170x182.2/176x7.2/12 | 170,0 | 182,0 | 182.2 | 176,0 | 12,0 | 7.2 | |
| A02B.55x65.6/58x5.3/7 | 55,0 | 65,0 | 65.6 | 58,0 | 7,0 | 5.3 | A02B.170x185/177.5x10.2/16 | 170,0 | 185,0 | 185,0 | 177.5 | 16,0 | 10.2 | |
| A02B.56x66.6/59x5.3/7 | 56,0 | 66,0 | 66.6 | 59,0 | 7,0 | 5.3 | A02B.180x200/190x10.2/18 | 180,0 | 200,0 | 200,0 | 190,0 | 18,0 | 10.2 | |
| A02B.58x68.6/61x5.3/7 | 58,0 | 68,0 | 68.6 | 61,0 | 7,0 | 5.3 | A02B.185x197/191x7.2/12 | 185,0 | 197,0 | 197,0 | 191,0 | 12,0 | 7.2 | |
| A02B.60x68.6/63x5.3/7 | 60,0 | 68,0 | 68.6 | 63,0 | 7,0 | 5.3 | A02B.200x220/210x10.2/18 | 200,0 | 220,0 | 220,0 | 210,0 | 18,0 | 10.2 | |
| A02B.60x70.6/63x5.3/7 | 60,0 | 70,0 | 70.6 | 63,0 | 7,0 | 5.3 | A02B.210x225/217.6x10.2/16 | 210,0 | 225,0 | 225,0 | 217.6 | 16,0 | 10.2 | |
| A02B.63x71.6/66x5.3/7 | 63,0 | 71,0 | 71.6 | 66,0 | 7,0 | 5.3 | A02B.220x240/230x10.2/18 | 220,0 | 240,0 | 240,0 | 230,0 | 18,0 | 10.2 | |
| A02B.63x73.6/66x5.3/7 | 63,0 | 73,0 | 73.6 | 66,0 | 7,0 | 5.3 | A02B.240x248/238x5.3/7 | 240,0 | 248,0 | 248,0 | 238,0 | 7,0 | 5.3 | |
| A02B.63x75.2/69x6.3/9 | 63,0 | 75,0 | 75.2 | 69,0 | 9,0 | 6.3 | A02B.240x260/250x10.2/18 | 240,0 | 260,0 | 260,0 | 250,0 | 18,0 | 10.2 | |
| A02B.65x73.6/68x5.3/7 | 65,0 | 73,0 | 73.6 | 68,0 | 7,0 | 5.3 | A02B.250x270/260x10.2/18 | 250,0 | 270,0 | 270,0 | 260,0 | 18,0 | 10.2 | |
| A02B.65x75.6/68x5.3/7 | 65,0 | 75,0 | 75.6 | 68,0 | 7,0 | 5.3 | A02B.260x280/270x10.2/18 | 260,0 | 280,0 | 280,0 | 270,0 | 18,0 | 10.2 | |
| A02B.70x78.6/73x5.3/7 | 70,0 | 78,0 | 78.6 | 73,0 | 7,0 | 5.3 | A02B.280x300/290x10.2/18 | 280,0 | 300,0 | 300,0 | 290,0 | 18,0 | 10.2 | |
| A02B.70x80.6/73x5.3/7 | 70,0 | 80,0 | 80.6 | 73,0 | 7,0 | 5.3 | A02B.300x320/310x10.2/18 | 300,0 | 320,0 | 320,0 | 310,0 | 18,0 | 10.2 | |
| A02B.70x82.2/76x7.2/12 | 70,0 | 82,0 | 82.2 | 76,0 | 12,0 | 7.2 | A02B.360x380/370x10.2/16 | 360,0 | 380,0 | 380,0 | 370,0 | 16,0 | 10.2 | |
| A02B.75x83.2/78x5.3/7 | 75,0 | 83,0 | 83.2 | 78,0 | 7,0 | 5.3 | ||||||||
| A02B.75x85.6/78x5.3/7 | 75,0 | 85,0 | 85.6 | 78,0 | 7,0 | 5.3 | ||||||||
| A02B.75x87.2/81x7.2/12 | 75,0 | 87,0 | 87.2 | 81,0 | 12,0 | 7.2 | ||||||||
| A02B.80x88.6/83x5.3/7 | 80,0 | 88,0 | 88.6 | 83,0 | 7,0 | 5.3 | ||||||||
| A02B.80x92.2/86x7.2/12 | 80,0 | 92,0 | 92.2 | 86,0 | 12,0 | 7.2 | ||||||||
| A02B.84x92.3/87x5.3/7 | 84,0 | 91.7 | 92.3 | 87,0 | 7,0 | 5.3 | ||||||||
