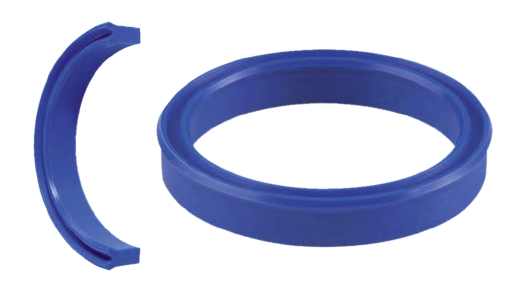

S06

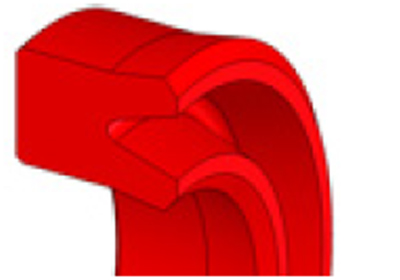

MÔ TẢ:

-Dùng cho xi lanh thủy lực, lực tác động một chiều.

-Thiết kế biên dạng đối xứng, làm kín bề mặt trục dịch chuyển. Ứng dụng phổ biến cho các thiết kế tiêu chuẩn, ứng dụng chung, đơn giản.

ĐIỀU KIỆN LÀM VIỆC:

Vật liệu chế tạo

Nhiệt độ làm việc

Vận tốc (max)

Áp suất (bar/psi)

PU

-30...+110˚C

0,5 m/s

400/5800

HPU

-20...+110˚C

0,5 m/s

400/5800

SPU

-20...+110˚C

0,7 m/s

400/5800

NBR

-30...+100˚C

0,5 m/s

160/2300

FKM

-20...+200˚C

0,5 m/s

160/2300

EPDM

-50...+150˚C

0,5 m/s

160/2300

-Lựa chọn vật liệu theo môi trường làm việc tại mục  VẬT LIỆU

Đặt hàng:
Những thông tin (*) là bắt buộc
Họ tên (*):

Địa chỉ (*):
Email (*):
Điện thoại (*):
Sản phẩm :
Yêu cầu:
Mã bảo vệ (*):

Chi tiết sản phẩm

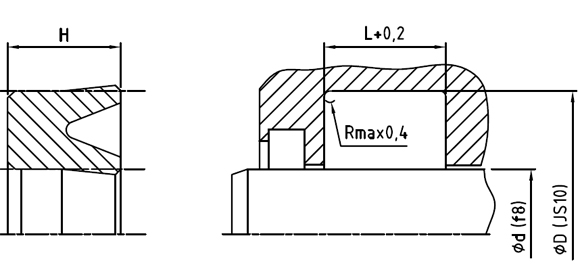

KÍCH THƯỚC TIÊU CHUẨN (mm)



MÃ SẢN PHẨM d  D H L
S06P.3x9x4.5 3 9 4.5 5
S06P.3x10x5 3 10 5 6
S06P.4x10x4 4 10 4 4.5
S06P.4x10x4 4 10 4 5
S06P.4x10x4.5 4 10 4.5 5.5
S06P.4x12x6 4 12 6 7
S06P.4x14x6 4 14 6 7
S06P.4.5x11x5 4.5 11 5 5.5
S06P.4.5x12.5x4.5 4.5 12.5 4.5 5
S06P.5x10x5 5 10 5 6
S06P.5x11x5 5 11 5 6
S06P.5x11x7 5 11 7 8
S06P.5x12x5 5 12 5 5.5
S06P.5x12x6 5 12 6 6.5
S06P.5x12x6.2 5 12 6.2 7
S06P.5x12.7x8.5 5 12.7 8.5 9
S06P.5x13x6 5 13 6 7
S06P.5x17x9 5 17 9 10
S06P.6x10x3 6 10 3 3.5
S06P.6x11x7 6 11 7 8
S06P.6x12x3.5 6 12 3.5 4.5
S06P.6x12x4 6 12 4 5
S06P.6x12x4.5 6 12 4.5 5
S06P.6x12x5 6 12 5 6
S06P.6x12x5.5 6 12 5.5 6.5
S06P.6x12x6 6 12 6 7
S06P.6x12x7 6 12 7 8
S06P.6x12.7x6 6 12.7 6 6.5
S06P.6x13x8 6 13 8 9
S06P.6x14x6 6 14 6 7
S06P.6x15x4 6 15 4 5
S06P.6x15x5 6 15 5 6
S06P.6x15x8 6 15 8 9
S06P.6x16x6 6 16 6 7
S06P.7x14x3.2 7 14 3.2 4.2
S06P.7x14x3.5 7 14 3.5 4.2
S06P.7x14x4 7 14 4 5
S06P.7x15x5 7 15 5 6
S06P.7x15x7 7 15 7 8
S06P.8x14x4 8 14 4 5
S06P.8x14x6 8 14 6 7
S06P.8x15x5.7 8 15 5.7 6.3
S06P.8x15x6 8 15 6 7
S06P.8x15x7 8 15 7 8
S06P.8x15x8 8 15 8 9
S06P.8x16x5.7 8 16 5.7 6.3
S06P.8x16x6 8 16 6 7
S06P.8x16x8 8 16 8 9
S06P.8x18x6 8 18 6 7
S06P.8x18x8 8 18 8 9
S06P.8x18x9 8 18 9 10
S06P.8x22x8 8 22 8 9
S06P.9x15x8 9 15 8 9
S06P.9x19x6.5 9 19 6.5 7
S06P.9x19x6 9 19 6 7
S06P.10x14x3 10 14 3 3.5
S06P.10x15x4 10 15 4 5
S06P.10x16x4 10 16 4 5
S06P.10x16x5 10 16 5 6
S06P.10x16x6 10 16 6 6.5
S06P.10x18x5.5 10 18 5.5 6
S06P.10x18x5 10 18 5 6
S06P.10x18x6 10 18 6 7
S06P.10x18x8 10 18 8 9
S06P.10x20x5 10 20 5 6
S06P.10x20x6 10 20 6 7
S06P.10x20x8 10 20 8 9
S06P.10x22x6 10 22 6 7
S06P.10x22x8 10 22 8 9
S06P.10x25x10 10 25 10 11
S06P.10x32x10 10 32 10 11
S06P.11x17x4 11 17 4 5
S06P.11x20.5x6.5 11 20.5 6.5 7
S06P.11x20.5x6 11 20.5 6 7
S06P.12x18x4 12 18 4 5
S06P.12x18x5 12 18 5 5.5
S06P.12x18x5 12 18 5 6
S06P.12x18x6 12 18 6 7
S06P.12x20x5 12 20 5 6
S06P.12x20x5.5 12 20 5.5 6.3
S06P.12x20x7 12 20 7 8
S06P.12x20x8 12 20 8 9
S06P.12x22x5 12 22 5 6
S06P.12x22x6 12 22 6 7
S06P.12x22x7 12 22 7 8
S06P.12x22x8 12 22 8 9
S06P.12x24x6 12 24 6 7
S06P.12x24x8 12 24 8 9
S06P.12x24x9 12 24 9 10
S06P.12x24x10 12 24 10 11
S06P.12x25x8 12 25 8 9
S06P.12x25x10 12 25 10 11
S06P.12x27x7.5 12 27 7.5 8.5
S06P.12.7x19.05x3.96 12.7 19.05 3.96 5.56
S06P.13.5x20x4 13.5 20 4 5
S06P.14x20x4 14 20 4 5
S06P.14x20x4.8 14 20 4.8 5.3
S06P.14x20x5 14 20 5 6
S06P.14x20x6 14 20 6 7
S06P.14x22x4.5 14 22 4.5 5
S06P.14x22x4 14 22 4 4.5
S06P.14x22x5 14 22 5 6
S06P.14x22x6 14 22 6 7
S06P.14x22x8 14 22 8 9
S06P.14x22x11 14 22 11 12
S06P.14x24x6 14 24 6 7
S06P.14x24x8 14 24 8 9
S06P.14x26x8 14 26 8 9
S06P.14x28x10 14 28 10 11
S06P.15x22x4 15 22 4 5
S06P.15x22x7 15 22 7 8
S06P.15x25x5 15 25 5 6
S06P.15x25x6 15 25 6 7
S06P.15x25x8 15 25 8 9
S06P.15x25x10 15 25 10 11
S06P.15x27x6 15 27 6 7
S06P.15x28x8 15 28 8 9
S06P.15x28x10 15 28 10 11
S06P.15x30x6 15 30 6 7
S06P.15x30x8 15 30 8 9
S06P.15x30x10 15 30 10 11
S06P.16x22x4 16 22 4 4.5
S06P.16x22x5 16 22 5 5.5
S06P.16x24x5 16 24 5 6
S06P.16x24x9 16 24 9 10
S06P.16x25x8 16 25 8 9
S06P.16x26x5 16 26 5 6
S06P.16x26x6 16 26 6 7
S06P.16x26x8 16 26 8 9
S06P.16x26x10 16 26 10 11
S06P.16x28x6 16 28 6 7
S06P.16x28x10 16 28 10 11
S06P.16x32x8 16 32 8 9
S06P.16.5x24x10 16.5 24 10 11
S06P.17x25x4 17 25 4 4.5
S06P.17x25x8 17 25 8 9
S06P.17x25x10 17 25 10 11
S06P.17x32x10 17 32 10 11
S06P.17x35x10 17 35 10 11
S06P.18x24x8 18 24 8 9
S06P.18x25x5 18 25 5 5.5
S06P.18x25x6 18 25 6 7
S06P.18x26x4 18 26 4 4.5
S06P.18x26x5 18 26 5 6
S06P.18x26x6.5 18 26 6.5 7.5
S06P.18x26x8 18 26 8 9
S06P.18x26x8.5 18 26 8.5 9.5
S06P.18x28x8 18 28 8 9
S06P.18x30x8 18 30 8 9
S06P.18x30x10 18 30 10 11
S06P.18x32x7 18 32 7 8
S06P.18x34x8 18 34 8 9
S06P.18x35x8 18 35 8 9
S06P.19x25x6 19 25 6 7
S06P.19x27x5 19 27 5 6
S06P.19.05x25.4x6.35 19.05 25.4 6.35 7.14
S06P.20x26x4 20 26 4 5
S06P.20x27x6 20 27 6 7
S06P.20x28x4 20 28 4 5
S06P.20x28x5 20 28 5 6
S06P.20x28x6 20 28 6 7
S06P.20x28x8 20 28 8 9
S06P.20x29x5 20 29 5 5.5
S06P.20x30x6 20 30 6 7
S06P.20x30x8 20 30 8 9
S06P.20x30x10 20 30 10 11
S06P.20x32x5 20 32 5 6
S06P.20x32x6 20 32 6 7
S06P.20x32x7.5 20 32 7.5 8.5
S06P.20x32x8 20 32 8 9
S06P.20x33x8 20 33 8 9
S06P.20x35x8 20 35 8 9
S06P.20x35x10 20 35 10 11
S06P.20x35x12 20 35 12 13
S06P.20x36x8 20 36 8 9
S06P.20x36x10 20 36 10 11
S06P.20x39x10.5 20 39 10.5 11
S06P.20x40x10 20 40 10 11
S06P.20x40x12 20 40 12 13
S06P.20x43x12 20 43 12 13
S06P.21x37x12 21 37 12 13
S06P.22x28x4 22 28 4 5
S06P.22x28x8 22 28 8 9
S06P.22x30x4 22 30 4 5
S06P.22x30x5 22 30 5 6
S06P.22x30x6 22 30 6 7
S06P.22x30x7 22 30 7 7.5
S06P.22x30x10 22 30 10 11
S06P.22x32x5 22 32 5 6
S06P.22x32x7 22 32 7 8
S06P.22x32x8 22 32 8 9
S06P.22x32x10 22 32 10 11
S06P.22x34x6 22 34 6 7
S06P.22x34x7 22 34 7 8
S06P.22x35x5 22 35 5 6
S06P.22x35x10 22 35 10 11
S06P.22x35.5x10 22 35.5 10 11
S06P.22x40x10 22 40 10 11
S06P.24x32x4 24 32 4 5
S06P.24x32x7 24 32 7 7.5
S06P.24x32x7.5 24 32 7.5 8
S06P.24x40x8 24 40 8 9
S06P.25x32x4 25 32 4 5
S06P.25x33x4 25 33 4 5
S06P.25x33x5 25 33 5 6
S06P.25x33x7 25 33 7 7.5
S06P.25x33x8 25 33 8 9
S06P.25x34x7 25 34 7 8
S06P.25x35x5 25 35 5 5.5
S06P.25x35x6 25 35 6 7
S06P.25x35x7 25 35 7 8
S06P.25x35x8 25 35 8 9
S06P.25x35x10 25 35 10 11
S06P.25x37x7 25 37 7 8
S06P.25x38x9.5 25 38 9.5 10.5
S06P.25x38x10 25 38 10 11
S06P.25x40x10 25 40 10 11
S06P.25x42x7 25 42 7 8
S06P.25x45x10 25 45 10 11
S06P.25.4x31.75x4.76 25.4 31.75 4.76 6.35
S06P.25.4x34.92x7.93 25.4 34.92 7.93 8.72
S06P.25.4x38.1x6.35 25.4 38.1 6.35 7.14
S06P.26x38x8 26 38 8 9
S06P.26x47x12 26 47 12 13
S06P.27x34x7 27 34 7 8
S06P.27x35x4 27 35 4 4.5
S06P.27x36x6 27 36 6 7
S06P.27x38x6 27 38 6 7
S06P.28x35x5 28 35 5 5.5
S06P.28x35.5x5 28 35.5 5 6
S06P.28x36x4 28 36 4 5
S06P.28x36x5 28 36 5 6
S06P.28x36x6 28 36 6 7
S06P.28x36x6.5 28 36 6.5 7.5
S06P.28x38x8 28 38 8 9
S06P.28x38x10 28 38 10 11
S06P.28x39x7.25 28 39 7.25 8.3
S06P.28x40x6 28 40 6 7
S06P.28x40x8 28 40 8 9
S06P.28x40x10 28 40 10 11
S06P.28x43x10 28 43 10 11
S06P.28x44x8 28 44 8 9
S06P.28x46x10 28 46 10 11
S06P.28.57x38.1x7.93 28.57 38.1 7.93 8.72
S06P.30x37x5.8 30 37 5.8 6.8
S06P.30x37x6 30 37 6 7
S06P.30x38x4 30 38 4 5
S06P.30x38x5 30 38 5 6
S06P.30x38x6 30 38 6 6.5
S06P.30x38x7 30 38 7 8
S06P.30x40x5 30 40 5 5.5
S06P.30x40x5.5 30 40 5.5 6.5
S06P.30x40x6 30 40 6 7
S06P.30x40x6.5 30 40 6.5 7.5
S06P.30x40x7 30 40 7 8
S06P.30x40x8 30 40 8 9
S06P.30x40x10 30 40 10 11
S06P.30x42x9 30 42 9 10
S06P.30x42x10 30 42 10 11
S06P.30x45x9 30 45 9 10
S06P.30x45x10 30 45 10 11
S06P.30x46x10 30 46 10 11
S06P.30x50x10 30 50 10 11
S06P.30x50x12 30 50 12 13
S06P.31.75x44.45x9.52 31.75 44.45 9.52 10.31

KÍCH THƯỚC TIÊU CHUẨN (mm)



MÃ SẢN PHẨM d  D H L
S06P.32x40x4 32 40 4 5
S06P.32x40x5 32 40 5 6
S06P.32x40x5.5 32 40 5.5 6.5
S06P.32x40x6 32 40 6 7
S06P.32x40x7 32 40 7 8
S06P.32x40x8 32 40 8 9
S06P.32x40x10 32 40 10 11
S06P.32x42x6 32 42 6 7
S06P.32x42x10 32 42 10 11
S06P.32x45x10 32 45 10 11
S06P.32x47x10 32 47 10 11
S06P.32x48x7 32 48 7 8
S06P.32x50x10 32 50 10 11
S06P.32x50x12 32 50 12 13
S06P.32x52x10 32 52 10 11
S06P.33x43x10 33 43 10 11
S06P.34x45x7 34 45 7 8
S06P.34x45x9 34 45 9 10
S06P.34x50x14 34 50 14 15
S06P.35x43x6 35 43 6 7
S06P.35x43x7 35 43 7 8
S06P.35x43x8 35 43 8 9
S06P.35x45x6 35 45 6 7
S06P.35x45x8 35 45 8 9
S06P.35x45x10 35 45 10 11
S06P.35x47x10 35 47 10 11
S06P.35x48x10 35 48 10 11
S06P.35x50x7 35 50 7 8
S06P.35x50x8 35 50 8 9
S06P.35x50x10 35 50 10 11
S06P.35x55x10 35 55 10 11
S06P.35x55x12 35 55 12 13
S06P.35.5x43.5x8 35.5 43.5 8 9
S06P.35.5x45x6 35.5 45 6 7
S06P.36x44x4 36 44 4 5
S06P.36x44x5.7 36 44 5.7 6.5
S06P.36x45x10 36 45 10 11
S06P.36x46x7 36 46 7 8
S06P.36x46x10 36 46 10 11
S06P.36x50x8 36 50 8 9
S06P.36x50x10 36 50 10 11
S06P.36x51x10 36 51 10 11
S06P.36x56x10 36 56 10 11
S06P.36x70x10 36 70 10 11
S06P.38x45x5 38 45 5 5.5
S06P.38x45x6 38 45 6 7
S06P.38x45x8 38 45 8 9
S06P.38x46x6.5 38 46 6.5 7.5
S06P.38x50x6 38 50 6 7
S06P.38x50x9 38 50 9 10
S06P.38x50x10 38 50 10 11
S06P.38x55x10 38 55 10 11
S06P.38x58x10 38 58 10 11
S06P.38.1x47.62x7.93 38.1 47.62 7.93 8.72
S06P.38.1x50.8x9.52 38.1 50.8 9.52 10.31
S06P.39x47x6 39 47 6 7
S06P.40x48x5 40 48 5 6
S06P.40x48x8 40 48 8 9
S06P.40x48x11 40 48 11 12
S06P.40x50x5 40 50 5 6
S06P.40x50x6 40 50 6 7
S06P.40x50x6.5 40 50 6.5 7.5
S06P.40x50x7 40 50 7 8
S06P.40x50x7.2 40 50 7.2 8
S06P.40x50x8 40 50 8 9
S06P.40x50x9 40 50 9 10
S06P.40x50x10 40 50 10 11
S06P.40x55x10 40 55 10 11
S06P.40x56x8 40 56 8 9
S06P.40x56x10 40 56 10 11
S06P.40x60x10 40 60 10 11
S06P.40x60x12 40 60 12 13
S06P.40x60x13 40 60 13 14
S06P.40x60x18 40 60 18 19
S06P.40x65x10 40 65 10 11
S06P.40x65x12 40 65 12 13
S06P.40x65x18.7 40 65 18.7 20
S06P.40x70x15 40 70 15 16
S06P.40x75x10.5 40 75 10.5 11
S06P.42x50x8 42 50 8 9
S06P.42x52x6 42 52 6 7
S06P.42x52x9 42 52 9 10
S06P.42x52x10 42 52 10 11
S06P.42x62x12 42 62 12 13
S06P.42x72x10 42 72 10 11
S06P.44.45x57.15x9.52 44.45 57.15 9.52 10.31
S06P.45x53x5.7 45 53 5.7 6.5
S06P.45x53x8 45 53 8 9
S06P.45x53x12 45 53 12 13
S06P.45x55x5 45 55 5 6
S06P.45x55x6 45 55 6 7
S06P.45x55x6.5 45 55 6.5 7.5
S06P.45x55x7 45 55 7 8
S06P.45x55x10 45 55 10 11
S06P.45x55x11 45 55 11 12
S06P.45x55x12 45 55 12 13
S06P.45x56x7 45 56 7 8
S06P.45x57.7x9.5 45 57.7 9.5 10.5
S06P.45x60x10 45 60 10 11
S06P.45x63x10 45 63 10 11
S06P.45x63x12 45 63 12 13
S06P.45x65x10 45 65 10 11
S06P.45x65x12 45 65 12 13
S06P.45x70x12 45 70 12 13
S06P.47.62x57.15x9.52 47.62 57.15 9.52 10.31
S06P.48x58x10 48 58 10 11
S06P.48x60x9 48 60 9 10
S06P.48x63x10 48 63 10 11
S06P.48x64x12 48 64 12 13
S06P.48x65x10 48 65 10 11
S06P.48x68x10 48 68 10 11
S06P.48x70x10 48 70 10 11
S06P.50x57x10 50 57 10 11
S06P.50x58x8 50 58 8 9
S06P.50x60x5 50 60 5 6
S06P.50x60x6 50 60 6 7
S06P.50x60x7.2 50 60 7.2 8
S06P.50x60x8 50 60 8 9
S06P.50x60x10 50 60 10 11
S06P.50x60x11 50 60 11 12
S06P.50x60x12 50 60 12 13
S06P.50x60x13 50 60 13 14
S06P.50x62x9 50 62 9 10
S06P.50x63x6 50 63 6 7
S06P.50x63x8 50 63 8 9
S06P.50x63x9 50 63 9 10
S06P.50x63x10 50 63 10 11
S06P.50x65x10 50 65 10 11
S06P.50x65x12 50 65 12 13
S06P.50x70x8 50 70 8 9
S06P.50x70x10 50 70 10 11
S06P.50x70x12 50 70 12 13
S06P.50x70x18 50 70 18 19
S06P.50x72x10 50 72 10 11
S06P.50x74x15 50 74 15 16
S06P.50x75x8 50 75 8 9
S06P.50x75x12 50 75 12 13
S06P.50.8x60.32x6.35 50.8 60.32 6.35 7.14
S06P.50.8x60.32x7.93 50.8 60.32 7.93 8.72
S06P.50.8x60.32x9.52 50.8 60.32 9.52 10.31
S06P.50.8x63.5x9.52 50.8 63.5 9.52 10.31
S06P.50.8x69.85x12.7 50.8 69.85 12.7 14.3
S06P.52x62x12 52 62 12 13
S06P.53x63x5 53 63 5 6
S06P.53x63x6.5 53 63 6.5 7.5
S06P.53x63x10 53 63 10 11
S06P.53x63x12 53 63 12 13
S06P.54x72x10 54 72 10 11
S06P.55x65x5 55 65 5 6
S06P.55x65x6 55 65 6 7
S06P.55x65x10 55 65 10 11
S06P.55x65x12 55 65 12 13
S06P.55x70x8 55 70 8 9
S06P.55x70x10 55 70 10 11
S06P.55x70x12 55 70 12 13
S06P.55x75x10 55 75 10 11
S06P.55x75x12 55 75 12 13
S06P.55x80x12 55 80 12 13
S06P.55x80x18 55 80 18 19
S06P.56x66x5 56 66 5 6
S06P.56x66x6.7 56 66 6.7 7.5
S06P.56x71x10 56 71 10 11
S06P.57.15x69.85x9.52 57.15 69.85 9.52 10.31
S06P.57.15x76.2x12.7 57.15 76.2 12.7 14.3
S06P.58x74x13 58 74 13 14
S06P.59x70x8 59 70 8 9
S06P.59x81x10 59 81 10 11
S06P.60x68x8 60 68 8 9
S06P.60x68x10 60 68 10 11
S06P.60x70x5 60 70 5 6
S06P.60x70x6 60 70 6 7
S06P.60x70x8 60 70 8 9
S06P.60x70x10 60 70 10 11
S06P.60x70x12 60 70 12 13
S06P.60x70x13 60 70 13 14
S06P.60x75x8 60 75 8 9
S06P.60x75x10 60 75 10 11
S06P.60x75x12 60 75 12 13
S06P.60x80x10 60 80 10 11
S06P.60x80x12 60 80 12 13
S06P.60x80x18 60 80 18 19
S06P.60x85x10 60 85 10 11
S06P.60x85x12 60 85 12 13
S06P.60x85x12.5 60 85 12.5 13.5
S06P.60x90x15 60 90 15 16
S06P.63x73x5 63 73 5 6
S06P.63x75x9 63 75 9 10
S06P.63x75x10 63 75 10 11
S06P.63x75x12 63 75 12 13
S06P.63x78x10 63 78 10 11
S06P.63x80x9 63 80 9 10
S06P.63x80x10 63 80 10 11
S06P.63x83x15 63 83 15 16
S06P.63.5x76.2x9.52 63.5 76.2 9.52 10.31
S06P.63.5x82.55x12.7 63.5 82.55 12.7 14.3
S06P.64x80x8 64 80 8 9
S06P.65x75x6 65 75 6 7
S06P.65x75x10 65 75 10 11
S06P.65x75x12 65 75 12 13
S06P.65x80x10 65 80 10 11
S06P.65x80x11 65 80 11 12
S06P.65x80x12 65 80 12 13
S06P.65x85x10 65 85 10 11
S06P.65x85x12 65 85 12 13
S06P.65x90x12 65 90 12 13
S06P.65x90x18 65 90 18 19
S06P.66x76x8 66 76 8 9
S06P.66x80x10 66 80 10 11
S06P.67x77x10 67 77 10 11
S06P.67x77x12 67 77 12 13
S06P.68x78x12 68 78 12 13
S06P.69.85x88.9x11.7 69.85 88.9 11.7 12.7
S06P.70x78x13.5 70 78 13.5 14.5
S06P.70x80x5 70 80 5 6
S06P.70x80x6 70 80 6 7
S06P.70x80x7 70 80 7 8
S06P.70x80x8 70 80 8 9
S06P.70x80x10 70 80 10 11
S06P.70x80x12 70 80 12 13
S06P.70x82x9.5 70 82 9.5 10.5
S06P.70x82x10 70 82 10 11
S06P.70x85x10 70 85 10 11
S06P.70x85x12 70 85 12 13
S06P.70x90x10 70 90 10 11
S06P.70x90x12 70 90 12 13
S06P.70x90x18 70 90 18 19
S06P.70x95x12 70 95 12 13
S06P.72x96x12 72 96 12 13
S06P.75x85x10 75 85 10 11
S06P.75x85x12 75 85 12 13
S06P.75x90x7.5 75 90 7.5 8.5
S06P.75x90x9 75 90 9 10
S06P.75x90x10 75 90 10 11
S06P.75x90x12 75 90 12 13
S06P.75x95x10 75 95 10 11
S06P.75x95x12 75 95 12 13
S06P.75x100x15 75 100 15 16
S06P.76.2x88.9x9.52 76.2 88.9 9.52 10.31
S06P.76.2x101.6x12.7 76.2 101.6 12.7 14.3
S06P.78x93x10.5 78 93 10.5 11.5
S06P.78x100x15 78 100 15 16
S06P.80x90x5 80 90 5 6
S06P.80x90x6 80 90 6 7
S06P.80x90x8 80 90 8 9
S06P.80x90x10 80 90 10 11
S06P.80x90x12 80 90 12 13
S06P.80x90x13.5 80 90 13.5 14.5
S06P.80x95x9 80 95 9 10
S06P.80x95x12 80 95 12 13
S06P.80x100x10 80 100 10 11
S06P.80x100x12 80 100 12 13
S06P.80x100x18 80 100 18 19
S06P.80x105x12 80 105 12 13
S06P.82x92x10 82 92 10 11
S06P.83x98x13.5 83 98 13.5 14.5
S06P.84x100x13.5 84 100 13.5 14.5
S06P.85x95x8.5 85 95 8.5 9.5
S06P.85x95x9.5 85 95 9.5 10.5
S06P.85x95x12 85 95 12 13
S06P.85x100x8 85 100 8 9
S06P.85x100x9 85 100 9 10
S06P.85x100x11 85 100 11 12
S06P.85x100x12 85 100 12 13
S06P.85x100x25 85 100 25 26
S06P.85x105x12 85 105 12 13

KÍCH THƯỚC TIÊU CHUẨN (mm)



MÃ SẢN PHẨM d  D H L
S06P.85x105x18 85 105 18 19
S06P.85x110x12 85 110 12 13
S06P.85x115x15 85 115 15 16
S06P.88.9x101.6x9.52 88.9 101.6 9.52 10.31
S06P.88.9x104.77x7.93 88.9 104.77 7.93 8.72
S06P.90x100x5 90 100 5 6
S06P.90x100x7 90 100 7 8
S06P.90x100x8 90 100 8 9
S06P.90x100x10 90 100 10 11
S06P.90x100x12 90 100 12 13
S06P.90x105x9 90 105 9 10
S06P.90x105x12 90 105 12 13
S06P.90x110x10 90 110 10 11
S06P.90x110x12 90 110 12 13
S06P.90x110x18 90 110 18 19
S06P.90x115x12 90 115 12 13
S06P.90x115x15 90 115 15 16
S06P.90x115x22 90 115 22 23
S06P.90x120x15 90 120 15 16
S06P.95x105x12 95 105 12 13
S06P.95x110x9 95 110 9 10
S06P.95x110x10 95 110 10 11
S06P.95x110x12 95 110 12 13
S06P.95x110x15 95 110 15 16
S06P.95x112x11 95 112 11 12
S06P.95x115x12 95 115 12 13
S06P.95x115x18 95 115 18 19
S06P.96x105x11 96 105 11 12
S06P.98x108x10 98 108 10 11
S06P.100x110x5 100 110 5 6
S06P.100x110x8 100 110 8 9
S06P.100x115x9 100 115 9 10
S06P.100x115x12 100 115 12 13
S06P.100x120x10 100 120 10 11
S06P.100x120x12 100 120 12 13
S06P.100x120x15 100 120 15 16
S06P.100x120x18 100 120 18 19
S06P.100x125x12 100 125 12 13
S06P.100x125x15 100 125 15 16
S06P.100x130x12 100 130 12 13
S06P.100x130x15 100 130 15 16
S06P.100x130x18 100 130 18 19
S06P.100x135x16 100 135 16 17
S06P.104x110x12 104 110 12 13
S06P.105x120x8 105 120 8 9
S06P.105x120x15 105 120 15 16
S06P.105x125x10 105 125 10 11
S06P.105x125x12 105 125 12 13
S06P.105x125x14 105 125 14 15
S06P.105x125x15 105 125 15 16
S06P.105x130x12 105 130 12 13
S06P.106x120x8.5 106 120 8.5 9.5
S06P.110x125x12 110 125 12 13
S06P.110x125x15 110 125 15 16
S06P.110x130x10 110 130 10 11
S06P.110x130x12 110 130 12 13
S06P.110x130x15 110 130 15 16
S06P.110x130x18 110 130 18 19
S06P.110x135x18 110 135 18 19
S06P.110x140x18 110 140 18 19
S06P.113x125x9.5 113 125 9.5 10.5
S06P.114.3x127x14.5 114.3 127 14.5 16
S06P.114.3x130.17x9.52 114.3 130.17 9.52 10.31
S06P.115x125x15 115 125 15 16
S06P.115x126x15 115 126 15 16
S06P.115x130x10 115 130 10 11
S06P.115x130x15 115 130 15 16
S06P.115x135x12 115 135 12 13
S06P.115x135x15 115 135 15 16
S06P.115x140x15 115 140 15 16
S06P.115x140x22 115 140 22 23
S06P.115x145x18 115 145 18 19
S06P.120x130x5 120 130 5 6
S06P.120x130x14 120 130 14 15
S06P.120x135x15 120 135 15 16
S06P.120x140x10 120 140 10 11
S06P.120x140x12 120 140 12 13
S06P.120x140x15 120 140 15 16
S06P.120x150x15 120 150 15 16
S06P.125x140x11 125 140 11 12
S06P.125x140x12 125 140 12 13
S06P.125x140x15 125 140 15 16
S06P.125x145x10 125 145 10 11
S06P.125x145x15 125 145 15 16
S06P.125x145x18 125 145 18 19
S06P.125x150x14 125 150 14 15
S06P.125x155x15 125 155 15 16
S06P.130x150x10 130 150 10 11
S06P.130x150x15 130 150 15 16
S06P.130x160x18 130 160 18 19
S06P.135x150x15 135 150 15 16
S06P.135x155x15 135 155 15 16
S06P.135x160x15 135 160 15 16
S06P.136x146x6 136 146 6 7
S06P.138x158x12 138 158 12 13
S06P.139.7x152.4x9.52 139.7 152.4 9.52 10.31
S06P.140x150x5 140 150 5 6
S06P.140x150x15 140 150 15 16
S06P.140x155x15 140 155 15 16
S06P.140x160x10 140 160 10 11
S06P.140x160x12 140 160 12 13
S06P.140x160x15 140 160 15 16
S06P.140x170x15 140 170 15 16
S06P.142x152x6 142 152 6 7
S06P.145x160x9 145 160 9 10
S06P.145x165x15 145 165 15 16
S06P.146x160x9 146 160 9 10
S06P.146x170x14 146 170 14 15
S06P.150x170x15 150 170 15 16
S06P.150x170x18 150 170 18 19
S06P.150x180x15 150 180 15 16
S06P.150x180x18 150 180 18 19
S06P.152.4x177.8x12.7 152.4 177.8 12.7 14.3
S06P.155x175x15 155 175 15 16
S06P.155x180x15 155 180 15 16
S06P.160x170x5 160 170 5 6
S06P.160x175x7.5 160 175 7.5 8.5
S06P.160x175x15 160 175 15 16
S06P.160x180x15 160 180 15 16
S06P.160x185x15 160 185 15 16
S06P.160x190x12 160 190 12 13
S06P.160x190x15 160 190 15 16
S06P.160x190x18 160 190 18 19
S06P.160x190x19 160 190 19 20
S06P.165x190x15 165 190 15 16
S06P.170x183x8.5 170 183 8.5 9.5
S06P.170x185x14.7 170 185 14.7 16
S06P.170x190x15 170 190 15 16
S06P.170x195x15 170 195 15 16
S06P.170x200x15 170 200 15 16
S06P.170x200x18 170 200 18 19
S06P.170x215x20 170 215 20 21
S06P.175x187x9.5 175 187 9.5 10.5
S06P.175x200x15 175 200 15 16
S06P.175x215x20 175 215 20 21
S06P.180x200x15 180 200 15 16
S06P.180x200x18 180 200 18 19
S06P.180x210x22 180 210 22 23
S06P.180x220x20 180 220 20 21
S06P.182x200x25 182 200 25 26
S06P.185x200x7.5 185 200 7.5 8.5
S06P.185x205x15 185 205 15 16
S06P.190x210x15 190 210 15 16
S06P.190x220x15 190 220 15 16
S06P.190x220x18 190 220 18 19
S06P.190x220x26 190 220 26 27
S06P.190x320x22 190 320 22 23
S06P.200x220x10 200 220 10 11
S06P.200x220x15 200 220 15 16
S06P.200x225x15 200 225 15 16
S06P.200x225x18 200 225 18 19
S06P.200x230x15 200 230 15 16
S06P.200x230x17 200 230 17 18
S06P.200x230x18 200 230 18 19
S06P.200x230x22 200 230 22 23
S06P.200x235x9 200 235 9 10
S06P.200x235x20 200 235 20 21
S06P.200x240x15 200 240 15 16
S06P.205x235x18 205 235 18 19
S06P.210x230x15 210 230 15 16
S06P.210x240x18 210 240 18 19
S06P.212x237x18 212 237 18 19
S06P.215x245x18 215 245 18 19
S06P.220x235x9 220 235 9 10
S06P.220x240x15 220 240 15 16
S06P.220x250x15 220 250 15 16
S06P.220x250x18 220 250 18 19
S06P.220x250x20 220 250 20 21
S06P.220x260x20 220 260 20 21
S06P.225x245x15 225 245 15 16
S06P.230x250x15 230 250 15 16
S06P.235x247x9 235 247 9 10
S06P.236x261x18 236 261 18 19
S06P.240x260x12 240 260 12 13
S06P.240x260x17 240 260 17 18
S06P.240x265x18 240 265 18 19
S06P.240x268x18 240 268 18 19
S06P.240x270x15 240 270 15 16
S06P.240x270x18 240 270 18 19
S06P.240x280x20 240 280 20 21
S06P.240x290x18 240 290 18 19
S06P.245x265x15 245 265 15 16
S06P.245x270x15 245 270 15 16
S06P.250x270x16 250 270 16 17
S06P.250x280x18 250 280 18 19
S06P.250x280x19 250 280 19 20
S06P.250x280x22 250 280 22 23
S06P.260x280x15 260 280 15 16
S06P.260x290x18 260 290 18 19
S06P.260x300x20 260 300 20 21
S06P.265x290x17 265 290 17 18
S06P.270x290x17 270 290 17 18
S06P.270x300x15 270 300 15 16
S06P.270x300x22 270 300 22 23
S06P.280x300x15 280 300 15 16
S06P.280x310x18 280 310 18 19
S06P.290x310x12 290 310 12 13
S06P.290x320x21 290 320 21 22
S06P.290x320x22 290 320 22 23
S06P.295x320x18 295 320 18 19
S06P.300x320x15 300 320 15 16
S06P.300x330x18 300 330 18 19
S06P.300x330x22 300 330 22 23
S06P.304.8x338.25x25.4 304.8 338.25 25.4 26.59
S06P.304.8x343.8x25.4 304.8 343.8 25.4 26.59
S06P.304.8x344.6x25.4 304.8 344.6 25.4 26.59
S06P.305x320x17 305 320 17 18
S06P.310x330x17 310 330 17 18
S06P.320x340x15 320 340 15 16
S06P.320x350x15 320 350 15 16
S06P.320x350x16 320 350 16 17
S06P.320x350x22.5 320 350 22.5 23.5
S06P.320x350x26 320 350 26 27
S06P.320x360x20 320 360 20 21
S06P.320x360x28 320 360 28 29
S06P.328x380x30 328 380 30 31
S06P.330x360x20 330 360 20 21
S06P.350x377x15 350 377 15 16
S06P.350x380x22 350 380 22 23
S06P.350x390x35 350 390 35 36
S06P.360x390x22 360 390 22 23
S06P.370x400x20 370 400 20 21
S06P.370x400x22 370 400 22 23
S06P.370x400x26 370 400 26 27
S06P.380x410x22 380 410 22 23
S06P.390x420x22 390 420 22 23
S06P.400x425x22 400 425 22 23
S06P.400x430x20 400 430 20 21
S06P.400x430x22 400 430 22 23
S06P.400x430x25 400 430 25 26
S06P.400x450x40 400 450 40 42
S06P.401x445x28 401 445 28 29
S06P.410x450x20 410 450 20 21
S06P.420x450x20 420 450 20 21
S06P.420x450x22 420 450 22 23
S06P.425x457x24 425 457 24 25
S06P.430x470x28 430 470 28 29
S06P.450x480x20 450 480 20 21
S06P.450x490x34 450 490 34 35
S06P.450x500x25 450 500 25 26
S06P.470x500x25 470 500 25 26
S06P.470x510x28 470 510 28 29
S06P.490x530x28 490 530 28 29
S06P.500x520x10 500 520 10 11
S06P.500x525x22 500 525 22 23
S06P.500x530x18 500 530 18 19
S06P.500x540x34 500 540 34 35
S06P.500x550x38 500 550 38 40
S06P.520x550x25 520 550 25 26
S06P.530x565x25 530 565 25 26
S06P.540x570x15 540 570 15 16
S06P.540x580x16 540 580 16 17
S06P.545x578x16.5 545 578 16.5 17.5
S06P.550x570x15 550 570 15 16
S06P.550x590x28 550 590 28 29
S06P.550x590x35 550 590 35 36
S06P.610x650x22 610 650 22 23
S06P.620x650x25 620 650 25 26
S06P.660x700x20 660 700 20 21
S06P.700x740x28 700 740 28 29
S06P.700x750x32 700 750 32 33
S06P.709.61x755.65x28.57 709.61 755.65 28.57 30.56
S06P.720x760x20 720 760 20 21
S06P.750x800x30 750 800 30 31
S06P.965.2x1016x19.05 965.2 1016 19.05 20.65



CHÍNH SÁCH BẢO MẬT

CHÍNH SÁCH CHUNG

Công ty TNHH Goăng phớt Việt Áo- GPVA Co., Ltd. Số ĐKKD 0105834316 cấp ngày 26/03/2012.
Địa chỉ VP: 192 ngõ Xã Đàn II Phường Nam Đồng Quận Đống Đa - TP.Hà Nội
Điện thoại : 024 3577 2916 Di động: 09 0354 7800. Email: admin@gpva.vn

Tổng truy cập:    1395686
