http://gpva.vn//upload/product/25118_ttx_3.jpg

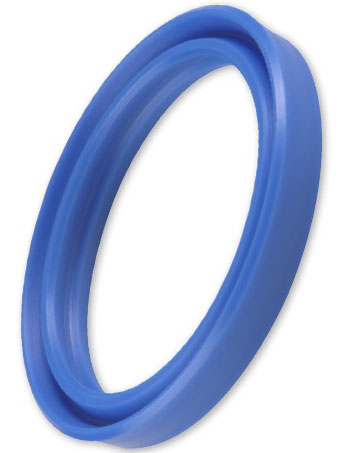

S17

MÔ TẢ:

-Dùng cho xi lanh thủy lực, lực tác động một chiều. Sử dụng theo cặp lắp đối xứng cùng với dẫn hướng để chịu lực tác động theo 2 chiều.

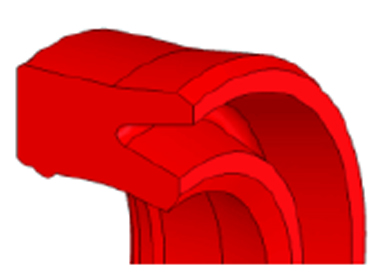

-Thiết kế dạng không đối xứng làm kín bề mặt trục dịch chuyển, đường kính ngoài phù hợp kích thước của rãnh trong lỗ piston hoặc bích đầu xilanh.

-Thiết kế bổ sung phần lợi phụ giúp ổn định phần lợi trong khi làm việc. Sử dụng phổ biến trong các xi lanh đẩy nhiều tầng, làm việc ở trạng thái động.

ĐIỀU KIỆN LÀM VIỆC:

Vật liệu chế tạo

Nhiệt độ làm việc

Vận tốc (max)

Áp suất (bar/psi)

 PU

 -30...+110˚C

 0,5 m/s

 400/5800

 HPU

 -20...+110˚C

 0,5 m/s

 400/5800

 NBR

 -30...+100˚C

 0,5 m/s

 160/2300

 FKM

 -20...+200˚C

 0,5 m/s

 160/2300

 EPDM

 -20...+150˚C

 0,5 m/s

 160/2300

 SPU

 -20...+110˚C

 0,7 m/s

160/2300

-Lựa chọn vật liệu theo môi trường làm việc tại mục  VẬT LIỆU

Đặt hàng:
Những thông tin (*) là bắt buộc
Họ tên (*):

Địa chỉ (*):
Email (*):
Điện thoại (*):
Sản phẩm :
Yêu cầu:
Mã bảo vệ (*):

Chi tiết sản phẩm

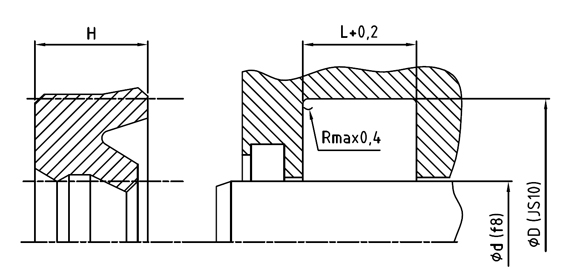

KÍCH THƯỚC TIÊU CHUẨN (mm)



MÃ SẢN PHẨM d  D H L
S17P.6x13x5 6.00 13.00 5.00 5.50
S17P.6x14x5.7 6.00 14.00 5.70 6.30
S17P.6x14x5.5 6.00 14.00 5.50 6.50
S17P.8x16x5.7 8.00 16.00 5.70 6.30
S17P.8x16x5.5 8.00 16.00 5.50 6.50
S17P.8x16x8 8.00 16.00 8.00 9.00
S17P.8x18x8 8.00 18.00 8.00 9.00
S17P.9.52x19.05x7.93 9.52 19.05 7.93 8.72
S17P.10x16x4.5 10.00 16.00 4.50 5.30
S17P.10x18x5.7 10.00 18.00 5.70 6.30
S17P.10x18x5.5 10.00 18.00 5.50 6.50
S17P.10x20x4.5 10.00 20.00 4.50 5.00
S17P.10x20x7 10.00 20.00 7.00 8.00
S17P.10x20x8 10.00 20.00 8.00 9.00
S17P.10x20x5.7 10.00 20.00 5.70 6.30
S17P.12x20x5.5 12.00 20.00 5.50 6.50
S17P.12x20x8 12.00 20.00 8.00 9.00
S17P.12x22x7.3 12.00 22.00 7.30 8.00
S17P.12x22x8 12.00 22.00 8.00 9.00
S17P.12.7x19.05x4.76 12.70 19.05 4.76 6.35
S17P.14x22x5.7 14.00 22.00 5.70 6.30
S17P.14x22x5.5 14.00 22.00 5.50 6.50
S17P.14x24x7.3 14.00 24.00 7.30 8.00
S17P.14x24x8 14.00 24.00 8.00 9.00
S17P.14x24x7.2 14.00 24.00 7.20 8.20
S17P.14.28x20.63x4.76 14.28 20.63 4.76 6.35
S17P.15x22x5 15.00 22.00 5.00 6.00
S17P.15x25x8 15.00 25.00 8.00 9.00
S17P.15x26x7.5 15.00 26.00 7.50 8.00
S17P.15.4x25.5x6.5 15.40 25.50 6.50 7.40
S17P.15.87x22.22x4.76 15.87 22.22 4.76 6.35
S17P.15.87x25.4x7.14 15.87 25.40 7.14 7.93
S17P.16x24x5.8 16.00 24.00 5.80 6.30
S17P.16x24x5.5 16.00 24.00 5.50 6.50
S17P.16x26x7.3 16.00 26.00 7.30 8.00
S17P.16x26x7 16.00 26.00 7.00 8.00
S17P.16x26x8 16.00 26.00 8.00 9.00
S17P.16x28x8 16.00 28.00 8.00 9.00
S17P.17x23x4 17.00 23.00 4.00 5.00
S17P.17.46x23.81x4.76 17.46 23.81 4.76 6.35
S17P.18x25x5 18.00 25.00 5.00 5.50
S17P.18x26x5.5 18.00 26.00 5.50 6.30
S17P.18x26x6.5 18.00 26.00 6.50 7.00
S17P.18x26x6.3 18.00 26.00 6.30 7.00
S17P.18x26x8.5 18.00 26.00 8.50 9.00
S17P.18x28x7.3 18.00 28.00 7.30 8.00
S17P.18x28x8 18.00 28.00 8.00 9.00
S17P.19.05x25.4x6.35 19.05 25.40 6.35 7.14
S17P.19.05x25.4x4.76 19.05 25.40 4.76 6.35
S17P.19.05x28.57x7.93 19.05 28.57 7.93 8.72
S17P.19.5x27.5x8.5 19.50 27.50 8.50 9.00
S17P.20x26x4.8 20.00 26.00 4.80 5.30
S17P.20x28x5.5 20.00 28.00 5.50 6.50
S17P.20x30x6 20.00 30.00 6.00 7.00
S17P.20x30x7 20.00 30.00 7.00 8.00
S17P.20x30x8 20.00 30.00 8.00 9.00
S17P.20x30x10 20.00 30.00 10.00 11.00
S17P.20x35x10 20.00 35.00 10.00 11.00
S17P.20.63x26.98x6.35 20.63 26.98 6.35 7.14
S17P.20.63x26.98x4.76 20.63 26.98 4.76 6.35
S17P.22x30x5.7 22.00 30.00 5.70 6.30
S17P.22x30x6 22.00 30.00 6.00 7.00
S17P.22x30x7 22.00 30.00 7.00 8.00
S17P.22x32x6 22.00 32.00 6.00 7.00
S17P.22x32x7.3 22.00 32.00 7.30 8.00
S17P.22x32x8 22.00 32.00 8.00 9.00
S17P.22x35x10 22.00 35.00 10.00 11.00
S17P.22.22x28.57x6.35 22.22 28.57 6.35 7.14
S17P.22.22x28.57x4.76 22.22 28.57 4.76 6.35
S17P.23x35x10 23.00 35.00 10.00 11.00
S17P.25x32x10 25.00 32.00 10.00 11.00
S17P.25x33x4.8 25.00 33.00 4.80 6.30
S17P.25x33x5.5 25.00 33.00 5.50 6.50
S17P.25x33x6.5 25.00 33.00 6.50 7.30
S17P.25x33x7 25.00 33.00 7.00 7.50
S17P.25x33x7.3 25.00 33.00 7.30 8.00
S17P.25x33x10 25.00 33.00 10.00 11.00
S17P.25x35x7.3 25.00 35.00 7.30 8.00
S17P.25x35x7 25.00 35.00 7.00 8.00
S17P.25x35x8 25.00 35.00 8.00 9.00
S17P.25x35x10 25.00 35.00 10.00 11.00
S17P.25x40x10 25.00 40.00 10.00 11.00
S17P.25x45x12 25.00 45.00 12.00 13.00
S17P.25.4x31.75x6.35 25.40 31.75 6.35 7.14
S17P.25.4x31.75x4.76 25.40 31.75 4.76 6.35
S17P.25.4x34.92x6.35 25.40 34.92 6.35 7.14
S17P.25.4x34.92x7.93 25.40 34.92 7.93 8.72
S17P.25.4x38.1x9.52 25.40 38.10 9.52 10.31
S17P.26.98x33.34x4.76 26.98 33.34 4.76 6.35
S17P.28x36x7.3 28.00 36.00 7.30 8.00
S17P.28x36x7 28.00 36.00 7.00 8.00
S17P.28x38x7.3 28.00 38.00 7.30 8.00
S17P.28x38x10 28.00 38.00 10.00 11.00
S17P.28x43x11.5 28.00 43.00 11.50 12.50
S17P.28.57x34.92x6.35 28.57 34.92 6.35 7.14
S17P.28.57x34.92x4.76 28.57 34.92 4.76 6.35
S17P.28.57x38.1x7.93 28.57 38.10 7.93 8.72
S17P.28.57x41.27x6.35 28.57 41.27 6.35 7.14
S17P.30x38x4.8 30.00 38.00 4.80 6.30
S17P.30x40x7 30.00 40.00 7.00 7.50
S17P.30x40x7.3 30.00 40.00 7.30 8.00
S17P.30x40x10 30.00 40.00 10.00 11.00
S17P.30x45x10 30.00 45.00 10.00 11.00
S17P.30x50x12 30.00 50.00 12.00 13.00
S17P.30.16x39.68x6.35 30.16 39.68 6.35 7.14
S17P.31.75x38.1x6.35 31.75 38.10 6.35 7.14
S17P.31.75x41.27x6.35 31.75 41.27 6.35 7.14
S17P.31.75x41.27x7.93 31.75 41.27 7.93 8.72
S17P.31.75x41.27x4.76 31.75 41.27 4.76 6.35
S17P.31.75x44.45x6.35 31.75 44.45 6.35 7.14
S17P.31.75x44.45x9.52 31.75 44.45 9.52 10.31
S17P.32x40x6.7 32.00 40.00 6.70 7.50
S17P.32x40x7.2 32.00 40.00 7.20 7.70
S17P.32x40x8 32.00 40.00 8.00 9.00
S17P.32x41.5x7.9 32.00 41.50 7.90 8.90
S17P.32x42x7.3 32.00 42.00 7.30 8.00
S17P.32x42x10 32.00 42.00 10.00 11.00
S17P.32x45x10 32.00 45.00 10.00 11.00
S17P.32x47x10 32.00 47.00 10.00 11.00
S17P.32x47x11.5 32.00 47.00 11.50 12.50
S17P.34.92x41.27x6.35 34.92 41.27 6.35 7.14
S17P.34.92x44.45x7.93 34.92 44.45 7.93 8.72
S17P.34.92x44.45x4.76 34.92 44.45 4.76 6.35
S17P.34.92x47.62x9.52 34.92 47.62 9.52 10.31
S17P.35x43x7.2 35.00 43.00 7.20 8.00
S17P.35x45x7 35.00 45.00 7.00 8.00
S17P.35x45x8 35.00 45.00 8.00 9.00
S17P.35x45x10 35.00 45.00 10.00 11.00
S17P.35x50x10 35.00 50.00 10.00 11.00
S17P.36x44x6.3 36.00 44.00 6.30 7.00
S17P.36x46x7.3 36.00 46.00 7.30 8.00
S17P.36x46x7 36.00 46.00 7.00 8.00
S17P.36x46x7.5 36.00 46.00 7.50 8.50
S17P.36x46x10 36.00 46.00 10.00 11.00
S17P.36x51x10 36.00 51.00 10.00 11.00
S17P.36x56x12 36.00 56.00 12.00 13.00
S17P.36.51x46.04x7.93 36.51 46.04 7.93 8.72
S17P.37x47x8 37.00 47.00 8.00 9.00
S17P.37x47x10 37.00 47.00 10.00 11.00
S17P.38x55x10 38.00 55.00 10.00 11.00
S17P.38.1x44.45x6.35 38.10 44.45 6.35 7.14
S17P.38.1x47.62x6.35 38.10 47.62 6.35 7.14
S17P.38.1x47.62x7.93 38.10 47.62 7.93 8.72
S17P.38.1x47.62x9.52 38.10 47.62 9.52 10.31
S17P.38.1x47.62x4.76 38.10 47.62 4.76 6.35
S17P.38.1x50.8x6.35 38.10 50.80 6.35 7.14
S17P.38.1x50.8x9.52 38.10 50.80 9.52 10.31
S17P.38.1x53.97x9.52 38.10 53.97 9.52 10.31
S17P.40x48x5.7 40.00 48.00 5.70 6.30
S17P.40x48x8 40.00 48.00 8.00 9.00
S17P.40x49.5x9.5 40.00 49.50 9.50 10.50
S17P.40x50x7.3 40.00 50.00 7.30 8.00
S17P.40x50x10 40.00 50.00 10.00 11.00
S17P.40x50x9.37 40.00 50.00 9.37 10.31
S17P.40x55x10 40.00 55.00 10.00 11.00
S17P.40x55x11.5 40.00 55.00 11.50 12.50
S17P.40x60x12 40.00 60.00 12.00 13.00
S17P.41.27x47.62x6.35 41.27 47.62 6.35 7.14
S17P.41.27x50.8x7.93 41.27 50.80 7.93 8.72
S17P.41.27x50.8x9.52 41.27 50.80 9.52 10.31
S17P.41.27x50.8x7.14 41.27 50.80 7.14 7.93
S17P.41.27x53.97x9.52 41.27 53.97 9.52 10.31
S17P.42x48x6 42.00 48.00 6.00 7.00
S17P.42x50x11.5 42.00 50.00 11.50 12.50
S17P.42x52x10 42.00 52.00 10.00 11.00
S17P.42x53x9 42.00 53.00 9.00 10.00
S17P.44.45x50.8x6.35 44.45 50.80 6.35 7.14
S17P.44.45x53.97x6.35 44.45 53.97 6.35 7.14
S17P.44.45x53.97x7.93 44.45 53.97 7.93 8.72
S17P.44.45x53.97x9.52 44.45 53.97 9.52 10.31
S17P.44.45x57.15x6.35 44.45 57.15 6.35 7.14
S17P.44.45x57.15x9.52 44.45 57.15 9.52 10.31

KÍCH THƯỚC TIÊU CHUẨN (mm)



MÃ SẢN PHẨM d  D H L
S17P.44.45x57.15x12.7 44.45 57.15 12.70 14.30
S17P.45x53x5.6 45.00 53.00 5.60 6.30
S17P.45x53x11.5 45.00 53.00 11.50 12.50
S17P.45x55x7.3 45.00 55.00 7.30 8.00
S17P.45x55x7 45.00 55.00 7.00 8.00
S17P.45x55x10 45.00 55.00 10.00 11.00
S17P.45x55x11.5 45.00 55.00 11.50 12.50
S17P.45x57.7x9.5 45.00 57.70 9.50 10.50
S17P.45x60x10 45.00 60.00 10.00 11.00
S17P.45x60x11.5 45.00 60.00 11.50 12.50
S17P.45x65x10 45.00 65.00 10.00 11.00
S17P.45x65x12 45.00 65.00 12.00 13.00
S17P.47.62x57.15x9.52 47.62 57.15 9.52 10.31
S17P.48x56x11.5 48.00 56.00 11.50 12.50
S17P.48x56x12 48.00 56.00 12.00 13.00
S17P.48x63x10 48.00 63.00 10.00 11.00
S17P.48x68x12 48.00 68.00 12.00 13.00
S17P.50x57x10 50.00 57.00 10.00 11.00
S17P.50x58x11.5 50.00 58.00 11.50 12.50
S17P.50x60x7.3 50.00 60.00 7.30 8.00
S17P.50x60x10 50.00 60.00 10.00 11.00
S17P.50x62x10 50.00 62.00 10.00 11.00
S17P.50x62.7x9.5 50.00 62.70 9.50 10.50
S17P.50x65x9.5 50.00 65.00 9.50 10.50
S17P.50x65x10 50.00 65.00 10.00 11.00
S17P.50x65x11 50.00 65.00 11.00 12.00
S17P.50x65x11.5 50.00 65.00 11.50 12.50
S17P.50x65x15.5 50.00 65.00 15.50 16.50
S17P.50x70x12 50.00 70.00 12.00 13.00
S17P.50x70x14 50.00 70.00 14.00 15.00
S17P.50.8x57.15x6.35 50.80 57.15 6.35 7.14
S17P.50.8x60.32x6.35 50.80 60.32 6.35 7.14
S17P.50.8x60.32x7.93 50.80 60.32 7.93 8.72
S17P.50.8x60.32x9.52 50.80 60.32 9.52 10.31
S17P.50.8x63.5x6.35 50.80 63.50 6.35 7.14
S17P.50.8x63.5x7.93 50.80 63.50 7.93 8.72
S17P.50.8x63.5x9.52 50.80 63.50 9.52 10.31
S17P.50.8x66.67x7.93 50.80 66.67 7.93 8.72
S17P.50.8x66.67x12.7 50.80 66.67 12.70 14.30
S17P.50.8x69.85x15.87 50.80 69.85 15.87 17.47
S17P.52x62x10 52.00 62.00 10.00 11.00
S17P.53.97x63.5x9.52 53.97 63.50 9.52 10.31
S17P.55x62.5x9 55.00 62.50 9.00 10.00
S17P.55x63x11.5 55.00 63.00 11.50 12.50
S17P.55x65x9 55.00 65.00 9.00 9.50
S17P.55x65x10 55.00 65.00 10.00 11.00
S17P.55x65x12 55.00 65.00 12.00 13.00
S17P.55x70x10 55.00 70.00 10.00 11.00
S17P.55x70x12 55.00 70.00 12.00 13.00
S17P.55x75x12 55.00 75.00 12.00 13.00
S17P.56x66x10 56.00 66.00 10.00 11.00
S17P.56x71x10 56.00 71.00 10.00 11.00
S17P.56x71x11.5 56.00 71.00 11.50 12.50
S17P.56x76x12 56.00 76.00 12.00 13.00
S17P.57.1x66.7x10 57.10 66.70 10.00 10.50
S17P.57.1x69.8x10 57.10 69.80 10.00 10.50
S17P.57.15x66.67x9.52 57.15 66.67 9.52 10.31
S17P.57.15x69.85x9.52 57.15 69.85 9.52 10.31
S17P.58x68x11.5 58.00 68.00 11.50 12.50
S17P.60x68x11.5 60.00 68.00 11.50 12.50
S17P.60x70x7.5 60.00 70.00 7.50 8.00
S17P.60x70x10 60.00 70.00 10.00 11.00
S17P.60x70x11.5 60.00 70.00 11.50 12.50
S17P.60x70x12 60.00 70.00 12.00 13.00
S17P.60x72x10 60.00 72.00 10.00 11.00
S17P.60x75x10 60.00 75.00 10.00 11.00
S17P.60x75x11.5 60.00 75.00 11.50 12.50
S17P.60x75x12 60.00 75.00 12.00 13.00
S17P.60x75x15.5 60.00 75.00 15.50 16.50
S17P.60x80x12 60.00 80.00 12.00 13.00
S17P.60.32x69.85x9.52 60.32 69.85 9.52 10.31
S17P.60.32x73.02x9.52 60.32 73.02 9.52 10.31
S17P.60.32x73.02x7.54 60.32 73.02 7.54 8.73
S17P.63x73x12 63.00 73.00 12.00 13.00
S17P.63x75x10 63.00 75.00 10.00 11.00
S17P.63x78x10 63.00 78.00 10.00 11.00
S17P.63x78x11.5 63.00 78.00 11.50 12.50
S17P.63x83x12 63.00 83.00 12.00 13.00
S17P.63x83x13.5 63.00 83.00 13.50 14.50
S17P.63.5x73.02x7.93 63.50 73.02 7.93 8.72
S17P.63.5x73.02x9.52 63.50 73.02 9.52 10.31
S17P.63.5x76.2x6.35 63.50 76.20 6.35 7.14
S17P.63.5x76.2x9.52 63.50 76.20 9.52 10.31
S17P.63.5x76.2x10 63.50 76.20 10.00 10.50
S17P.63.5x79.37x12.7 63.50 79.37 12.70 14.30
S17P.63.5x82.55x15.87 63.50 82.55 15.87 17.47
S17P.65x73x11.5 65.00 73.00 11.50 12.50
S17P.65x75x10 65.00 75.00 10.00 11.00
S17P.65x75x11.5 65.00 75.00 11.50 12.50
S17P.65x75x12 65.00 75.00 12.00 13.00
S17P.65x77.7x9.5 65.00 77.70 9.50 10.50
S17P.65x78x10 65.00 78.00 10.00 11.00
S17P.65x80x10 65.00 80.00 10.00 11.00
S17P.65x80x12 65.00 80.00 12.00 13.00
S17P.65x85x12 65.00 85.00 12.00 13.00
S17P.66x80x10.5 66.00 80.00 10.50 11.00
S17P.66.67x76.2x9.52 66.67 76.20 9.52 10.31
S17P.66.67x79.37x12.7 66.67 79.37 12.70 14.30
S17P.66.67x82.55x15.87 66.67 82.55 15.87 17.47
S17P.67x75x11.5 67.00 75.00 11.50 12.50
S17P.69.8x82.5x10 69.80 82.50 10.00 10.50
S17P.69.85x79.37x9.52 69.85 79.37 9.52 10.31
S17P.69.85x82.55x9.52 69.85 82.55 9.52 10.31
S17P.69.85x85.72x9.52 69.85 85.72 9.52 10.31
S17P.69.85x85.72x12.7 69.85 85.72 12.70 14.30
S17P.69.85x88.9x15.87 69.85 88.90 15.87 17.47
S17P.70x77.5x9 70.00 77.50 9.00 10.00
S17P.70x78x11.5 70.00 78.00 11.50 12.50
S17P.70x79x13 70.00 79.00 13.00 14.00
S17P.70x80x11.5 70.00 80.00 11.50 12.50
S17P.70x80x12 70.00 80.00 12.00 13.00
S17P.70x85x10 70.00 85.00 10.00 11.00
S17P.70x85x11.5 70.00 85.00 11.50 12.50
S17P.70x85x12 70.00 85.00 12.00 13.00
S17P.70x90x12 70.00 90.00 12.00 13.00
S17P.70x90x15 70.00 90.00 15.00 16.00
S17P.73x82.4x7.3 73.00 82.40 7.30 7.80
S17P.73.02x82.55x9.52 73.02 82.55 9.52 10.31
S17P.75x83x11.5 75.00 83.00 11.50 12.50
S17P.75x85x8.7 75.00 85.00 8.70 9.50
S17P.75x85x10.5 75.00 85.00 10.50 11.00
S17P.75x85x11.5 75.00 85.00 11.50 12.50
S17P.75x85x12 75.00 85.00 12.00 13.00
S17P.75x90x10 75.00 90.00 10.00 11.00
S17P.75x90x12 75.00 90.00 12.00 13.00
S17P.76.2x85.72x9.52 76.20 85.72 9.52 10.31
S17P.76.2x88.9x9.52 76.20 88.90 9.52 10.31
S17P.76.2x88.9x10 76.20 88.90 10.00 10.50
S17P.76.2x88.9x15.87 76.20 88.90 15.87 17.47
S17P.76.2x92.07x12.7 76.20 92.07 12.70 14.30
S17P.76.2x95.25x15.87 76.20 95.25 15.87 17.47
S17P.77x86x14 77.00 86.00 14.00 15.00
S17P.78x86x11.5 78.00 86.00 11.50 12.50
S17P.78x86x13.5 78.00 86.00 13.50 14.50
S17P.78x88x12 78.00 88.00 12.00 13.00
S17P.78x90x12.5 78.00 90.00 12.50 13.00
S17P.79.37x88.9x9.52 79.37 88.90 9.52 10.31
S17P.79.37x88.9x15.87 79.37 88.90 15.87 17.47
S17P.79.4x88.9x10 79.40 88.90 10.00 10.50
S17P.80x88x11.5 80.00 88.00 11.50 12.50
S17P.80x90x12 80.00 90.00 12.00 13.00
S17P.80x90x13.5 80.00 90.00 13.50 14.50
S17P.80x95x10 80.00 95.00 10.00 11.00
S17P.80x95x11.5 80.00 95.00 11.50 12.50
S17P.80x95x12 80.00 95.00 12.00 13.00
S17P.80x100x12 80.00 100.00 12.00 13.00
S17P.80x100x15 80.00 100.00 15.00 16.00
S17P.82.5x97.5x12.5 82.50 97.50 12.50 13.00
S17P.82.55x92.07x9.52 82.55 92.07 9.52 10.31
S17P.82.55x92.07x14.28 82.55 92.07 14.28 15.72
S17P.82.55x95.25x9.52 82.55 95.25 9.52 10.31
S17P.82.55x98.42x12.7 82.55 98.42 12.70 14.30
S17P.85x92.5x9 85.00 92.50 9.00 10.00
S17P.85x93x11.5 85.00 93.00 11.50 12.50
S17P.85x100x11.5 85.00 100.00 11.50 12.50
S17P.85x100x12 85.00 100.00 12.00 13.00
S17P.85x105x12 85.00 105.00 12.00 13.00
S17P.88.9x98.42x9.52 88.90 98.42 9.52 10.31
S17P.88.9x101.6x7.93 88.90 101.60 7.93 8.72
S17P.88.9x101.6x9.52 88.90 101.60 9.52 10.31
S17P.88.9x101.6x10 88.90 101.60 10.00 10.50
S17P.88.9x104.77x12.7 88.90 104.77 12.70 14.30
S17P.88.9x107.95x15.87 88.90 107.95 15.87 17.47
S17P.90x98x11.5 90.00 98.00 11.50 12.50
S17P.90x100x7.5 90.00 100.00 7.50 8.00
S17P.90x100x9 90.00 100.00 9.00 10.00
S17P.90x100x10 90.00 100.00 10.00 11.00
S17P.90x100x11.5 90.00 100.00 11.50 12.50
S17P.90x100x12 90.00 100.00 12.00 13.00
S17P.90x105x11.5 90.00 105.00 11.50 12.50
S17P.90x105x12 90.00 105.00 12.00 13.00
S17P.90x110x12 90.00 110.00 12.00 13.00

KÍCH THƯỚC TIÊU CHUẨN (mm)



MÃ SẢN PHẨM d  D H L
S17P.92.07x104.77x9.52 92.07 104.77 9.52 10.31
S17P.93x101x11.5 93.00 101.00 11.50 12.50
S17P.95x103x11.5 95.00 103.00 11.50 12.50
S17P.95x103x12 95.00 103.00 12.00 13.00
S17P.95x105x9 95.00 105.00 9.00 9.50
S17P.95x105x12 95.00 105.00 12.00 13.00
S17P.95x115x12 95.00 115.00 12.00 13.00
S17P.95.25x104.77x9.52 95.25 104.77 9.52 10.31
S17P.95.25x107.95x9.52 95.25 107.95 9.52 10.31
S17P.95.25x107.95x12.7 95.25 107.95 12.70 14.30
S17P.95.25x107.95x14.28 95.25 107.95 14.28 15.72
S17P.97x105x11.5 97.00 105.00 11.50 12.50
S17P.97x105x13.5 97.00 105.00 13.50 14.50
S17P.97x106x14 97.00 106.00 14.00 15.00
S17P.99x109x12.5 99.00 109.00 12.50 13.00
S17P.100x108x11.5 100.00 108.00 11.50 12.50
S17P.100x110x10.5 100.00 110.00 10.50 11.00
S17P.100x110x11.5 100.00 110.00 11.50 12.50
S17P.100x110x14 100.00 110.00 14.00 15.00
S17P.100x115x12 100.00 115.00 12.00 13.00
S17P.100x120x12 100.00 120.00 12.00 13.00
S17P.100x120x15 100.00 120.00 15.00 16.00
S17P.100x120x14.5 100.00 120.00 14.50 16.00
S17P.100x125x15 100.00 125.00 15.00 16.00
S17P.101.6x111.12x9.52 101.60 111.12 9.52 10.31
S17P.101.6x114.3x7.93 101.60 114.30 7.93 8.72
S17P.101.6x114.3x9.52 101.60 114.30 9.52 10.31
S17P.101.6x114.3x14.28 101.60 114.30 14.28 15.72
S17P.101.6x117.47x9.52 101.60 117.47 9.52 10.31
S17P.101.6x117.47x12.7 101.60 117.47 12.70 14.30
S17P.101.6x120.65x12.7 101.60 120.65 12.70 14.30
S17P.101.6x120.65x15.87 101.60 120.65 15.87 17.47
S17P.105x113x11.5 105.00 113.00 11.50 12.50
S17P.105x113x13.5 105.00 113.00 13.50 14.50
S17P.105x115x11.5 105.00 115.00 11.50 12.50
S17P.105x120x9.9 105.00 120.00 9.90 10.90
S17P.107.95x127x15.87 107.95 127.00 15.87 17.47
S17P.110x118x11.5 110.00 118.00 11.50 12.50
S17P.110x120x12 110.00 120.00 12.00 13.00
S17P.110x125x12 110.00 125.00 12.00 13.00
S17P.110x125x15 110.00 125.00 15.00 16.00
S17P.110x130x12 110.00 130.00 12.00 13.00
S17P.110x130x15 110.00 130.00 15.00 16.00
S17P.110x130x14.5 110.00 130.00 14.50 16.00
S17P.110x135x15 110.00 135.00 15.00 16.00
S17P.112x122x10.5 112.00 122.00 10.50 11.00
S17P.113x123x9 113.00 123.00 9.00 9.50
S17P.114.3x127x9.52 114.30 127.00 9.52 10.31
S17P.114.3x130.17x12.7 114.30 130.17 12.70 14.30
S17P.114.3x130.17x15.87 114.30 130.17 15.87 17.47
S17P.114.3x133.35x15.87 114.30 133.35 15.87 17.47
S17P.115x123x11.5 115.00 123.00 11.50 12.50
S17P.115x125x12 115.00 125.00 12.00 13.00
S17P.115x125x14 115.00 125.00 14.00 15.00
S17P.115x130x10.5 115.00 130.00 10.50 11.00
S17P.115x140x15 115.00 140.00 15.00 16.00
S17P.117x126x14 117.00 126.00 14.00 15.00
S17P.117.47x133.35x15.87 117.47 133.35 15.87 17.47
S17P.118x126x11.5 118.00 126.00 11.50 12.50
S17P.118x126x13.5 118.00 126.00 13.50 14.50
S17P.120x128x11.5 120.00 128.00 11.50 12.50
S17P.120x130x11.5 120.00 130.00 11.50 12.50
S17P.120x130x12 120.00 130.00 12.00 13.00
S17P.120x130x13.5 120.00 130.00 13.50 14.50
S17P.120x135x15 120.00 135.00 15.00 16.00
S17P.120x140x12 120.00 140.00 12.00 13.00
S17P.120x140x15 120.00 140.00 15.00 16.00
S17P.120.65x130.17x9.52 120.65 130.17 9.52 10.31
S17P.120.65x130.17x15.87 120.65 130.17 15.87 17.47
S17P.121x135x9 121.00 135.00 9.00 10.00
S17P.125x133x11.5 125.00 133.00 11.50 12.50
S17P.125x135x10 125.00 135.00 10.00 11.00
S17P.125x135x13.5 125.00 135.00 13.50 14.50
S17P.125x145x12 125.00 145.00 12.00 13.00
S17P.125x145x15 125.00 145.00 15.00 16.00
S17P.125x150x15 125.00 150.00 15.00 16.00
S17P.125x155x18 125.00 155.00 18.00 19.00
S17P.127x139.7x9.52 127.00 139.70 9.52 10.31
S17P.127x139.7x12.28 127.00 139.70 12.28 15.72
S17P.127x142.87x12.7 127.00 142.87 12.70 14.30
S17P.127x146.05x15.87 127.00 146.05 15.87 17.47
S17P.128x136x11.5 128.00 136.00 11.50 12.50
S17P.130x138x11.5 130.00 138.00 11.50 12.50
S17P.130x140x13.5 130.00 140.00 13.50 14.50
S17P.130x150x12 130.00 150.00 12.00 13.00
S17P.130x150x15 130.00 150.00 15.00 16.00
S17P.130.17x152.4x12.7 130.17 152.40 12.70 14.30
S17P.130.17x152.4x12.7 130.17 152.40 12.70 14.30
S17P.131x150x13 131.00 150.00 13.00 14.00
S17P.132x143x11.5 132.00 143.00 11.50 12.50
S17P.135x143x11,.5 135.00 143.00 11,.5 12.50
S17P.135x145x12 135.00 145.00 12.00 13.00
S17P.135x150x11.5 135.00 150.00 11.50 12.50
S17P.135x150x15 135.00 150.00 15.00 16.00
S17P.136.52x149.22x15.87 136.52 149.22 15.87 17.47
S17P.136.52x149.22x15.87 136.52 149.22 15.87 17.47
S17P.137x146x14 137.00 146.00 14.00 15.00
S17P.139.7x152.4x9.52 139.70 152.40 9.52 10.31
S17P.139.7x152.4x14.28 139.70 152.40 14.28 15.72
S17P.139.7x155.57x7.93 139.70 155.57 7.93 8.72
S17P.139.7x158.75x15.87 139.70 158.75 15.87 17.47
S17P.140x148x11.5 140.00 148.00 11.50 12.50
S17P.140x150x11.5 140 150.00 11.50 12.50
S17P.140x160x12 140.00 160.00 12.00 13.00
S17P.140x160x15 140.00 160.00 15.00 16.00
S17P.140x165x15 140.00 165.00 15.00 16.00
S17P.140x170x18 140 170.00 18.00 19.00
S17P.141x151x12.5 141 151.00 12.50 13.00
S17P.142.87x155.57x9.52 142.87 155.57 9.52 10.31
S17P.143x151x11.5 143.00 151.00 11.50 12.50
S17P.143x151x13.5 143 151.00 13.50 14.50
S17P.145x155x12.5 145 155.00 12.50 13.00
S17P.145x160x12 145.00 160.00 12.00 13.00
S17P.150x160x13.5 150 160.00 13.50 14.50
S17P.150x170x14.5 150 170.00 14.50 15.50
S17P.150x170x15 150.00 170.00 15.00 16.00
S17P.150x180x18 150.00 180.00 18.00 19.00
S17P.152x160x11.5 152 160.00 11.50 12.50
S17P.152x162x10.5 152 162.00 10.50 11.00
S17P.152x171x11.5 152.00 171.00 11.50 12.50
S17P.152.4x165.1x14.28 152.4 165.10 14.28 15.72
S17P.152.4x171.45x15.87 152.4 171.45 15.87 17.47
S17P.152.5x160.5x14 152.5 160.50 14.00 15.00
S17P.155x163x11.5 155.00 163.00 11.50 12.50
S17P.160x168x11.5 160.00 168.00 11.50 12.50
S17P.160x170x11.5 160.00 170.00 11.50 12.50
S17P.160x170x12 160.00 170.00 12.00 13.00
S17P.160x180x15 160.00 180.00 15.00 16.00
S17P.160x185x15 160.00 185.00 15.00 16.00
S17P.160x185x18.2 160.00 185.00 18.20 20.00
S17P.160x190x18 160.00 190.00 18.00 19.00
S17P.162x172x12 162.00 172.00 12.00 13.00
S17P.165x184x13 165.00 184.00 13.00 14.00
S17P.165x190x17 165.00 190.00 17.00 18.00
S17P.165.1x184.15x15.87 165.10 184.15 15.87 17.47
S17P.170x178x11.5 170.00 178.00 11.50 12.50
S17P.170x180x12.5 170.00 180.00 12.50 13.00
S17P.170x190x15 170.00 190.00 15.00 16.00
S17P.170x200x18 170.00 200.00 18.00 19.00
S17P.175x185x12.5 175.00 185.00 12.50 13.00
S17P.177x205x19 177.00 205.00 19.00 20.00
S17P.177.8x190.5x14.28 177.80 190.50 14.28 15.72
S17P.177.8x196.85x15.87 177.80 196.85 15.87 17.47
S17P.180x188x13.5 180.00 188.00 13.50 14.50
S17P.180x190x10 180.00 190.00 10.00 11.00
S17P.180x195x12.5 180.00 195.00 12.50 13.50
S17P.180x200x15 180.00 200.00 15.00 16.00
S17P.180x205x15 180.00 205.00 15.00 16.00
S17P.180x205x19 180.00 205.00 19.00 20.00
S17P.180x210x18 180.00 210.00 18.00 19.00
S17P.185x193x11.5 185.00 193.00 11.50 12.50
S17P.190.5x203.2x9.52 190.50 203.20 9.52 10.31
S17P.196.85x215.9x15.87 196.85 215.90 15.87 17.47
S17P.200x208x11.5 200.00 208.00 11.50 12.50
S17P.200x220x15 200.00 220.00 15.00 16.00
S17P.200x225x19 200.00 225.00 19.00 20.00
S17P.200x230x18 200.00 230.00 18.00 19.00
S17P.203.2x215.9x9.52 203.20 215.90 9.52 10.31
S17P.203.2x215.9x14.28 203.20 215.90 14.28 15.72
S17P.203.2x222.25x15.87 203.20 222.25 15.87 17.47
S17P.205x220x12.5 205.00 220.00 12.50 13.50
S17P.209x228x13 209.00 228.00 13.00 14.00
S17P.210x230x15 210.00 230.00 15.00 16.00
S17P.210x240x18 210.00 240.00 18.00 19.00
S17P.212x220x13.5 212.00 220.00 13.50 14.50
S17P.215.9x228.6x9.52 215.90 228.60 9.52 10.31
S17P.220x250x18 220.00 250.00 18.00 19.00
S17P.228.6x241.3x14.28 228.60 241.30 14.28 15.72
S17P.232x246x12.5 232.00 246.00 12.50 13.00
S17P.250x270x15 250.00 270.00 15.00 16.00
S17P.320x350x20 320.00 350.00 20.00 21.00
S17P.360x400x23 360.00 400.00 23.00 24.00



CHÍNH SÁCH BẢO MẬT

CHÍNH SÁCH CHUNG

Công ty TNHH Goăng phớt Việt Áo- GPVA Co., Ltd. Số ĐKKD 0105834316 cấp ngày 26/03/2012.
Địa chỉ VP: 192 ngõ Xã Đàn II Phường Nam Đồng Quận Đống Đa - TP.Hà Nội
Điện thoại : 024 3577 2916 Di động: 09 0354 7800. Email: admin@gpva.vn

Tổng truy cập:    1306876
