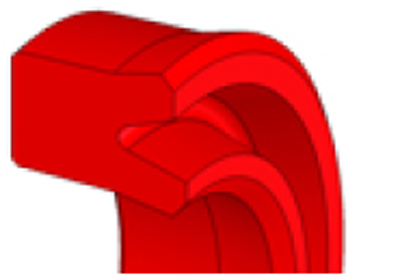

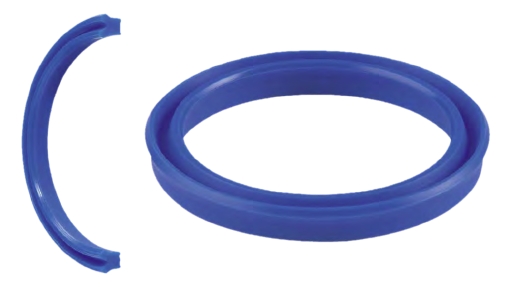

K01P

MÔ TẢ:

-Dùng cho xi lanh thủy lực, lực tác động một chiều.

-Phớt biên dạng không đối xứng, làm kín bề mặt xi lanh-piston dịch chuyển cho các ứng dụng chung.

-Thiết kế phớt biên dạng K01 phần đường kích trong của phớt được lắp căng trên rãnh, giúp ổn định trong quá trình làm việc và tạo hiệu quả làm kín tối đa với dải nhiệt độ rộng.

-Thiết kế được sử dụng theo cặp (hai chiếc lắp đối xứng) cùng với dẫn hướng dẫn hướng để sử dụng cho lực tác động hai chiều hoặc ngăn cách 2 khoang dầu truyền lực khác nhau.

ĐIỀU KIỆN LÀM VIỆC:

Vật liệu chế tạo

Nhiệt độ làm việc

Vận tốc (max)

Áp suất (bar/psi)

PU

-30...+110˚C

0,5 m/s

400/5800

HPU

-20...+110˚C

0,5 m/s

400/5800

SPU

-20...+110˚C

0,7 m/s

400/5800

-Lựa chọn vật liệu theo môi trường làm việc tại mục  VẬT LIỆU

Đặt hàng:
Những thông tin (*) là bắt buộc
Họ tên (*):

Địa chỉ (*):
Email (*):
Điện thoại (*):
Sản phẩm :
Yêu cầu:
Mã bảo vệ (*):

Chi tiết sản phẩm

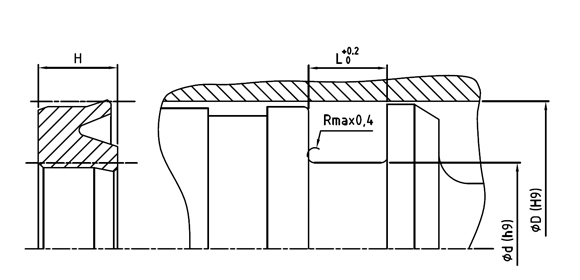

KÍCH THƯỚC TIÊU CHUẨN (mm)



Code D H L
K01P.14x8x5.7 14 8 5.7 6.3
K01P.14x8x5.8 14 8 5.8 6.8
K01P.14x8x5.7 14 8 5.7 6.3
K01P.14x8x5.8 14 8 5.8 6.8
K01P.16x6x8 16 6 8 9
K01P.16x10x4 16 10 4 4.5
K01P.16x10x6 16 10 6 6.5
K01P.16x10x8 16 10 8 9
K01P.20x8x7.5 20 8 7.5 8.5
K01P.20x10x7.5 20 10 7.5 8.5
K01P.20x10x8 20 10 8 9
K01P.20x12x5.5 20 12 5.5 6
K01P.20x12x7 20 12 7 7.5
K01P.20x14x5.5 20 14 5.5 6
K01P.20x14x5.5 20 14 5.5 6.5
K01P.22x12x8 22 12 8 9
K01P.25x10x10 25 10 10 11
K01P.25x15x7.3 25 15 7.3 8
K01P.25x15x8 25 15 8 9
K01P.25x17x5.5 25 17 5.5 6.3
K01P.25x17x10 25 17 10 11
K01P.25.4x19.05x6.35 25.4 19.05 6.35 7.14
K01P.28.57x19.05x7.93 28.57 19.05 7.93 8.72
K01P.30x15x10 30 15 10 11
K01P.30x20x8 30 20 8 9
K01P.30x22x6.5 30 22 6.5 7
K01P.32x22x7.3 32 22 7.3 8
K01P.32x22x8 32 22 8 9
K01P.32x22x10 32 22 10 11
K01P.32x24x5.5 32 24 5.5 6.3
K01P.32x24x5.7 32 24 5.7 6.7
K01P.32x26x5 32 26 5 6
K01P.32x27x7 32 27 7 8
K01P.34x22x8.7 34 22 8.7 9.4
K01P.34x22x8.4 34 22 8.4 9.4
K01P.34x22x9 34 22 9 10
K01P.35x20x10 35 20 10 11
K01P.35x25x7.3 35 25 7.3 8.3
K01P.35x25x8 35 25 8 9
K01P.35x27x10 35 27 10 11
K01P.36.5x24x6.5 36.5 24 6.5 7
K01P.37x21x12 37 21 12 13
K01P.38x30x6.5 38 30 6.5 7.5
K01P.38x31x4.7 38 31 4.7 5.2
K01P.38.1x28.75x6.35 38.1 28.75 6.35 7.14
K01P.38.1x31.75x6.35 38.1 31.75 6.35 7.14
K01P.40x25x9 40 25 9 10
K01P.40x25x10 40 25 10 11
K01P.40x28x10 40 28 10 11
K01P.40x30x6.5 40 30 6.5 7.5
K01P.40x30x7 40 30 7 8
K01P.40x30x10 40 30 10 11
K01P.40x32x5.7 40 32 5.7 6.3
K01P.40x32x8 40 32 8 9
K01P.40x33x8 40 33 8 9
K01P.42x22x10 42 22 10 11
K01P.42x32x10.5 42 32 10.5 11
K01P.42x34.5x3.7 42 34.5 3.7 4.7
K01P.43x25x9.5 43 25 9.5 10
K01P.43x33x7.3 43 33 7.3 8
K01P.44x20x11 44 20 11 12
K01P.44.45x30.16x7.89 44.45 30.16 7.89 8.72
K01P.45x25x12 45 25 12 13
K01P.45x28.5x12 45 28.5 12 13
K01P.45x30x10 45 30 10 11
K01P.45x35x6 45 35 6 7
K01P.45x37x9 45 37 9 10
K01P.50x30x12 50 30 12 13
K01P.50x32x10 50 32 10 11
K01P.50x35x9 50 35 9 9.5
K01P.50x35x10 50 35 10 11
K01P.50x36x10 50 36 10 11
K01P.50x40x5 50 40 5 5.5
K01P.50x40x7 50 40 7 8
K01P.50x40x10 50 40 10 11
K01P.50x42x5.5 50 42 5.5 6
K01P.50x42x8 50 42 8 9
K01P.50x42x10 50 42 10 11
K01P.50.8x34.92x12.7 50.8 34.92 12.7 13.48
K01P.50.8x38.1x9.52 50.8 38.1 9.52 10.31
K01P.50.8x40.8x7.5 50.8 40.8 7.5 8
K01P.50.8x41.27x4.76 50.8 41.27 4.76 5.38
K01P.50.8x41.27x7.93 50.8 41.27 7.93 8.72
K01P.50.8x41.27x9.52 50.8 41.27 9.52 10.31
K01P.52x42x10 52 42 10 10.6
K01P.53x45x8 53 45 8 9
K01P.54x44x7.3 54 44 7.3 8
K01P.55x35x12 55 35 12 13
K01P.55x40x10 55 40 10 11
K01P.55x45x7 55 45 7 8
K01P.55x45x10 55 45 10 11
K01P.55x47x4.8 55 47 4.8 6.3
K01P.56x45x7 56 45 7 8
K01P.56x46x6 56 46 6 7
K01P.57.15x44.45x9.52 57.15 44.45 9.52 10.31
K01P.57.15x47.62x9.52 57.15 47.62 9.52 10.31
K01P.60x40x12 60 40 12 13
K01P.60x40x13.5 60 40 13.5 14.5
K01P.60x45x10 60 45 10 11
K01P.60x50x5 60 50 5 5.5
K01P.60x50x7 60 50 7 8
K01P.60x50x8 60 50 8 9
K01P.60x50x10 60 50 10 11
K01P.60x52x8 60 52 8 9
K01P.63x43x12 63 43 12 13
K01P.63x45x10 63 45 10 11
K01P.63x45x12 63 45 12 13
K01P.63x48x9 63 48 9 9.5
K01P.63x48x10 63 48 10 11
K01P.63x48x11.4 63 48 11.4 12.5
K01P.63x48x12 63 48 12 13
K01P.63x53x6 63 53 6 7

KÍCH THƯỚC TIÊU CHUẨN (mm)



Code D H L
K01P.63x53x7 63 53 7 8
K01P.63x53x12 63 53 12 13
K01P.63x53.6x7 63 53.6 7 8
K01P.63x55x5.7 63 55 5.7 6.3
K01P.63.5x41.27x12.7 63.5 41.27 12.7 13.48
K01P.63.5x47.62x12.7 63.5 47.62 12.7 13.48
K01P.63.5x50.8x6.35 63.5 50.8 6.35 7.14
K01P.63.5x50.8x9.52 63.5 50.8 9.52 10.31
K01P.63.5x53.97x6.35 63.5 53.97 6.35 7.14
K01P.63.5x53.97x7.93 63.5 53.97 7.93 8.72
K01P.63.5x53.97x9.52 63.5 53.97 9.52 10.31
K01P.65x45x12 65 45 12 13
K01P.65x50x10 65 50 10 11
K01P.65x50x11.5 65 50 11.5 12.5
K01P.65x55x7.3 65 55 7.3 8
K01P.65x55x10 65 55 10 11
K01P.65x55x13.5 65 55 13.5 14.5
K01P.67x57x7.3 67 57 7.3 8
K01P.68x48x10 68 48 10 11
K01P.68x60x8 68 60 8 9
K01P.70x50x12 70 50 12 13
K01P.70x50x13.5 70 50 13.5 14.5
K01P.70x50x15 70 50 15 16
K01P.70x55x10 70 55 10 10.5
K01P.70x55x10 70 55 10 11
K01P.70x55x12 70 55 12 13
K01P.70x60x6 70 60 6 7
K01P.70x60x7.5 70 60 7.5 8
K01P.70x60x8 70 60 8 9
K01P.70x60x12 70 60 12 13
K01P.70x60x13.5 70 60 13.5 14.5
K01P.70x62x7.5 70 62 7.5 8.5
K01P.70x62x8 70 62 8 9
K01P.71x61x6 71 61 6 7
K01P.72x58x12 72 58 12 13
K01P.75x50x14 75 50 14 15
K01P.75x55x12 75 55 12 13
K01P.75x55x13.5 75 55 13.5 14.5
K01P.75x60x12 75 60 12 13
K01P.75x65x5 75 65 5 5.5
K01P.75x65x7.5 75 65 7.5 8
K01P.75x65x10.5 75 65 10.5 11
K01P.75x65x13.5 75 65 13.5 14.5
K01P.76.2x60.32x12.7 76.2 60.32 12.7 13.48
K01P.76.2x63.5x6.35 76.2 63.5 6.35 7.14
K01P.76.2x63.5x9.52 76.2 63.5 9.52 10.31
K01P.76.2x66.67x9.52 76.2 66.67 9.52 10.31
K01P.80x60x12 80 60 12 13
K01P.80x60x13.5 80 60 13.5 14.5
K01P.80x60x14.5 80 60 14.5 16
K01P.80x65x11.4 80 65 11.4 12.5
K01P.80x65x12 80 65 12 13
K01P.80x70x6.7 80 70 6.7 7.5
K01P.80x70x7 80 70 7 8
K01P.80x70x8 80 70 8 9
K01P.80x70x12 80 70 12 13
K01P.80x72x12 80 72 12 13
K01P.82.55x66.67x12.7 82.55 66.67 12.7 13.48
K01P.82.55x69.85x6.35 82.55 69.85 6.35 7.14
K01P.82.55x69.85x9.52 82.55 69.85 9.52 10.31
K01P.82.55x73.02x6.35 82.55 73.02 6.35 7.14
K01P.85x65x13.5 85 65 13.5 14.5
K01P.85x70x12 85 70 12 13
K01P.85x75x8 85 75 8 9
K01P.85x75x10 85 75 10 11
K01P.85x75x12 85 75 12 13
K01P.88.9x69.85x12.7 88.9 69.85 12.7 13.48
K01P.88.9x69.85x15.87 88.9 69.85 15.87 17.47
K01P.88.9x73.02x7.93 88.9 73.02 7.93 8.72
K01P.88.9x73.02x12.7 88.9 73.02 12.7 13.48
K01P.88.9x76.2x6.35 88.9 76.2 6.35 7.14
K01P.88.9x76.2x9.52 88.9 76.2 9.52 10.31
K01P.88.9x79.37x9.52 88.9 79.37 9.52 10.31
K01P.89x79.5x7 89 79.5 7 8
K01P.90x65x12 90 65 12 13
K01P.90x70x12 90 70 12 13
K01P.90x70x13.5 90 70 13.5 14.5
K01P.90x75x11.4 90 75 11.4 12.5
K01P.90x75x12 90 75 12 13
K01P.90x80x5 90 80 5 5.5
K01P.90x80x10 90 80 10 11
K01P.90x80x13 90 80 13 14
K01P.90x80x13.5 90 80 13.5 14.5
K01P.95x75x13.5 95 75 13.5 14.5
K01P.95x80x12 95 80 12 13
K01P.95x85x7 95 85 7 7.5
K01P.95x85x7.5 95 85 7.5 8
K01P.95x85x9 95 85 9 9.5
K01P.95x85x13.5 95 85 13.5 14.5
K01P.95.25x82.55x9.52 95.25 82.55 9.52 10.31
K01P.100x80x10 100 80 10 11
K01P.100x80x12 100 80 12 13
K01P.100x80x13.5 100 80 13.5 14.5
K01P.100x80x15 100 80 15 16
K01P.100x85x11.4 100 85 11.4 12.5
K01P.100x85x12 100 85 12 13
K01P.100x86x12 100 86 12 13
K01P.100x88x8.5 100 88 8.5 9.5
K01P.100x90x7 100 90 7 8
K01P.100x90x10.5 100 90 10.5 11.5
K01P.101.6x80x12 101.6 80 12 13
K01P.101.6x82.55x9.52 101.6 82.55 9.52 10.31
K01P.101.6x82.55x12.7 101.6 82.55 12.7 13.48
K01P.101.6x82.55x15.87 101.6 82.55 15.87 17.47
K01P.101.6x85.72x12.7 101.6 85.72 12.7 13.48
K01P.101.6x88.9x6.35 101.6 88.9 6.35 7.14
K01P.101.6x88.9x7.93 101.6 88.9 7.93 8.72
K01P.101.6x88.9x9.52 101.6 88.9 9.52 10.31
K01P.101.6x92.07x9.52 101.6 92.07 9.52 10.31
K01P.105x90x12 105 90 12 13
K01P.107.95x95.25x9.52 107.95 95.25 9.52 10.31
K01P.110x85x15 110 85 15 16

KÍCH THƯỚC TIÊU CHUẨN (mm)



Code D H L
K01P.110x90x12 110 90 12 13
K01P.110x90x15 110 90 15 16
K01P.110x95x10 110 95 10 11
K01P.110x95x12 110 95 12 13
K01P.110x100x7 110 100 7 8
K01P.110x100x13.5 110 100 13.5 14.5
K01P.114.3x95.25x15.87 114.3 95.25 15.87 17.47
K01P.114.3x101.6x9.52 114.3 101.6 9.52 10.31
K01P.115x90x15 115 90 15 16
K01P.115x95x15 115 95 15 16
K01P.115x98x14.5 115 98 14.5 16
K01P.115x100x10.5 115 100 10.5 11.5
K01P.115x105x13.5 115 105 13.5 14.5
K01P.120x95x12 120 95 12 13
K01P.120x100x12 120 100 12 13
K01P.120x100x13.5 120 100 13.5 14.5
K01P.120x103x16 120 103 16 17
K01P.120x105x12 120 105 12 13
K01P.125x95x18 125 95 18 19
K01P.125x100x15 125 100 15 16
K01P.125x105x12 125 105 12 13
K01P.125x105x15 125 105 15 16
K01P.125x110x9.6 125 110 9.6 10.6
K01P.125x110x10 125 110 10 11
K01P.125x115x7 125 115 7 8
K01P.125x115x15 125 115 15 16
K01P.127x107.95x9.52 127 107.95 9.52 10.31
K01P.127x107.95x12.7 127 107.95 12.7 13.48
K01P.127x107.95x15.87 127 107.95 15.87 17.47
K01P.127x114.3x6.35 127 114.3 6.35 7.14
K01P.127x114.3x9.52 127 114.3 9.52 10.31
K01P.127x114.3x14.28 127 114.3 14.28 15.72
K01P.130x110x12 130 110 12 13
K01P.130x110x15 130 110 15 16
K01P.130x120x13.5 130 120 13.5 14.5
K01P.133.35x114.3x12.7 133.35 114.3 12.7 13.48
K01P.139.7x120.65x15.87 139.7 120.65 15.87 17.47
K01P.140x114x12 140 114 12 13
K01P.140x120x12 140 120 12 13
K01P.140x120x15 140 120 15 16
K01P.140x125x9 140 125 9 10
K01P.140x125x15 140 125 15 16
K01P.145x115x18 145 115 18 18.6
K01P.150x120x18 150 120 18 19
K01P.150x125x13.5 150 125 13.5 14.5
K01P.150x130x15 150 130 15 16
K01P.150x135x9 150 135 9 10
K01P.150x140x7 150 140 7 8
K01P.152.4x133.35x9.52 152.4 133.35 9.52 10.31
K01P.152.4x133.35x12.7 152.4 133.35 12.7 13.48
K01P.152.4x133.35x15.87 152.4 133.35 15.87 17.47
K01P.152.4x139.7x6.35 152.4 139.7 6.35 7.14
K01P.152.4x139.7x9.52 152.4 139.7 9.52 10.31
K01P.152.4x139.7x14.28 152.4 139.7 14.28 15.72
K01P.158.75x146.05x14.28 158.75 146.05 14.28 15.72
K01P.160x130x18 160 130 18 19
K01P.160x135x18.5 160 135 18.5 20
K01P.160x140x13.5 160 140 13.5 14.5
K01P.160x140x15 160 140 15 16
K01P.160x145x9 160 145 9 10
K01P.160x148x7 160 148 7 7.5
K01P.160x148x15.5 160 148 15.5 16.5
K01P.170x145x19 170 145 19 20
K01P.170x150x15 170 150 15 16
K01P.174.8x165.2x7 174.8 165.2 7 7.5
K01P.177.8x158.75x9.52 177.8 158.75 9.52 10.31
K01P.177.8x158.75x12.7 177.8 158.75 12.7 13.48
K01P.177.8x158.75x15.87 177.8 158.75 15.87 17.47
K01P.177.8x165.1x6.35 177.8 165.1 6.35 7.14
K01P.177.8x165.1x9.52 177.8 165.1 9.52 10.31
K01P.180x150x18 180 150 18 19
K01P.180x160x13.5 180 160 13.5 14.5
K01P.180x160x15 180 160 15 16
K01P.180x165x18 180 165 18 19
K01P.180x166x15.5 180 166 15.5 16.5
K01P.190x165x16 190 165 16 17
K01P.190x170x15 190 170 15 16
K01P.200x170x18 200 170 18 19
K01P.200x175x18.2 200 175 18.2 19.2
K01P.200x180x13.5 200 180 13.5 14.5
K01P.200x180x15 200 180 15 16
K01P.200x186x14.5 200 186 14.5 15.5
K01P.203.2x184.15x15.87 203.2 184.15 15.87 17.47
K01P.203.2x190.5x6.35 203.2 190.5 6.35 7.14
K01P.220x190x18 220 190 18 19
K01P.220x195x16 220 195 16 17
K01P.220x200x15 220 200 15 16
K01P.228.6x196.85x19.05 228.6 196.85 19.05 20.95
K01P.228.6x203.2x19.05 228.6 203.2 19.05 20.95
K01P.250x220x18 250 220 18 19
K01P.250x230x12 250 230 12 13
K01P.250x230x15 250 230 15 16
K01P.250x238x14 250 238 14 15
K01P.280x250x18 280 250 18 19
K01P.300x288x14 300 288 14 15
K01P.304.8x266.7x19.05 304.8 266.7 19.05 20.95
K01P.320x280x22 320 280 22 23
K01P.320x285x20 320 285 20 21
K01P.320x290x20 320 290 20 21
K01P.350x320x22 350 320 22 23
K01P.355.6x317.5x19.05 355.6 317.5 19.05 20.95
K01P.360x320x28 360 320 28 29
K01P.360x330x20 360 330 20 21
K01P.360x330x25 360 330 25 26
K01P.370x345x15 370 345 15 16
K01P.380x350x26 380 350 26 27
K01P.400x360x28 400 360 28 29
K01P.400x370x20 400 370 20 21
K01P.430x400x25 430 400 25 26
K01P.560x540x22 560 540 22 24
K01P.1400x1350x35 1400 1350 35 37
