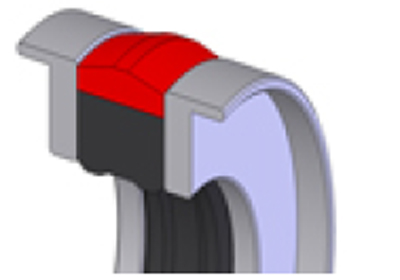

K09

 MÔ TẢ:

-Dùng cho xi lanh thủy lực, lực tác động hai chiều.

-Phớt biên dạng ghép, làm kín bề mặt xi lanh-piston dịch chuyển, khả năng định tâm cao.

-Phần gioăng ép tạo lực nén phớt làm kín, giúp làm kín bề mặt xi lanh, phần vòng chặn có tác dụng định vị phớt và dẫn hướng, ứng dụng cho xi lanh có lực tác động lớn, hành trình dài và áp suất cao.

ĐIỀU KIỆN LÀM VIỆC:

Vật liệu chế tạo

Nhiệt độ làm việc

Vận tốc (max)

Áp suất (bar/psi)

Phớt

Gioăng nén

PU

NBR (85Sh.A)

-30...+100˚C

0,5m/s

400/5800

HPU

FPM/FKM (75Sh.A)

-20...+200˚C

0,5m/s

400/5800

PTFE glass

EPDM

-30...+100˚C

1,5m/s

400/5800

PTFE glass NBR (85Sh.A) -20...+200˚C 1,5m/s 400/5800

-Vật liệu chế tạo vòng chặn: POM/PA.

-Lựa chọn vật liệu theo môi trường làm việc tại mục  VẬT LIỆU .
