Gioăng Phớt Thủy Lực Việt Áo
Sản phẩm   /  Phớt Xi lanh - Hydraulic Cylinder Seals  /  Phớt quả piston-Piston Seals

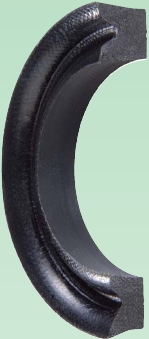

http://gpva.vn//upload/product/1171547083_gum_pistone K06R.jpg
K06R

 MÔ TẢ:

-Dùng cho thủy lực, lực tác động một chiều.

-Thiết kế phớt biên dạng đối xứng, đường kính trong của phớt lắp căng trên rãnh, sử dụng cho các ứng dụng chung, dễ lắp  đối với các xi lanh có đường kính nhỏ.

ĐIỀU KIỆN LÀM VIỆC:

Vật liệu chế tạo

Nhiệt độ làm việc

Vận tốc (max)

Áp suất (bar/psi)

PU

-30...+110˚C

0,5 m/s

400/5800

HPU

-20...+110˚C

0,5 m/s

400/5800

SPU

-20...+110˚C

0,7 m/s

400/5800

NBR

-30...+100˚C

0,5 m/s

160/2300

FKM

-20...+200˚C

0,5 m/s

160/2300

EPDM

-50...+150˚C

0,5 m/s

160/2300

-Lựa chọn vật liệu theo môi trường làm việc tại mục  VẬT LIỆU

CÁC MÃ BIÊN DẠNG SỬ DỤNG THAY THẾ:

TTU - MU/P - RSS - RUB - T20 - AUN - CG - 601 - MA25 - KN25 - SN25 - UP - RPS - K21 - MSUC - PUM - UPI - USI - CPU - MUU - DSU - HU - RP-70 - U-S106 - U-K106

Đặt hàng:
Những thông tin (*) là bắt buộc
Họ tên (*):

Địa chỉ (*):
Email (*):
Điện thoại (*):
Sản phẩm :
Yêu cầu:
Mã bảo vệ (*):

Chi tiết sản phẩm

 Phớt K06-P dùng thay thế tương đương các mã bên dạng: TTU - MU/P - RSS - RUB - T20 - AUN - CG - 601 - MA25 - KN25 - SN25 - UP - RPS - K21 - MSUC - PUM - UPI - USI - CPU - MUU - DSU - HU - RP-70 - U-S106 - U-K106

KÍCH THƯỚC TIÊU CHUẨN (mm)

Code  D d  H L
K06R.7,5x4x3 7,5 4 3 3,5
K06R.10x3x6 10 3 6 7
K06R.10x4x4,5 10 4 4,5 5,5
K06R.10x4x5 10 4 5 6
K06R.10x5x4 10 5 4 4,5
K06R.10x6x3 10 6 3 3,5
K06R.11x4x8 11 4 8 9
K06R.11x5x5 11 5 5 6
K06R.11x5x7 11 5 7 8
K06R.11,5x6x3,4 11,5 6 3,4 4
K06R.12x4x4 12 4 4 4,5
K06R.12x4x5,5 12 4 5,5 6,5
K06R.12x5x5 12 5 5 6
K06R.12x6x4 12 6 4 4,5
K06R.12x6x6 12 6 6 7
K06R.12x6x7 12 6 7 8
K06R.12x8x5 12 8 5 6
K06R.12,5x7x3,5 12,5 7 3,5 4
K06R.14x5x4,5 14 5 4,5 5,5
K06R.14x6x4 14 6 4 5
K06R.14x6x6 14 6 6 7
K06R.14x8x4 14 8 4 4,5
K06R.14x8x6 14 8 6 7
K06R.14x10x3,5 14 10 3,5 4
K06R.15x6x5 15 6 5 6
K06R.15x7x7 15 7 7 8
K06R.15x8x6 15 8 6 7
K06R.16x6x5 16 6 5 6
K06R.16x6x6 16 6 6 7
K06R.16x8x4 16 8 4 5
K06R.16x8x6 16 8 6 7
K06R.16x8x8 16 8 8 9
K06R.16x9x4 16 9 4 4,5
K06R.16x10x4 16 10 4 4,5
K06R.16x10x5 16 10 5 6
K06R.16x10x6 16 10 6 7
K06R.17x6x6 17 6 6 7
K06R.18x6x8 18 6 8 9
K06R.18x8x6 18 8 6 7
K06R.18x8x8 18 8 8 9
K06R.18x10x4 18 10 4 5
K06R.18x10x6 18 10 6 7
K06R.18x10x8 18 10 8 9
K06R.18x12x4 18 12 4 4,5
K06R.18x12x5 18 12 5 6
K06R.18x12x6 18 12 6 7
K06R.19x9x6 19 9 6 7
K06R.20x6x8 20 6 8 9
K06R.20x10x5 20 10 5 6
K06R.20x10x7 20 10 7 8
K06R.20x10x8 20 10 8 9
K06R.20x12x5 20 12 5 6
K06R.20x12x8 20 12 8 9
K06R.20x14x4 20 14 4 4,5
K06R.20x14x5 20 14 5 6
K06R.20x14x6 20 14 6 7
K06R.20x15x3 20 15 3 3,5
K06R.21,5x11,5x7 21,5 11,5 7 8
K06R.22x8x8 22 8 8 9
K06R.22x10x6 22 10 6 7
K06R.22x10x8 22 10 8 9
K06R.22x10x9 22 10 9 10
K06R.22x12x5 22 12 5 6
K06R.22x12x6 22 12 6 7
K06R.22x12x7 22 12 7 8
K06R.22x12x8 22 12 8 9
K06R.22x14x4 22 14 4 4,5
K06R.22x14x5 22 14 5 6
K06R.22x14x8 22 14 8 9
K06R.22x14x12 22 14 12 13
K06R.22x15x4 22 15 4 4,5
K06R.22x16x3 22 16 3 3,5
K06R.22x16x5 22 16 5 6
K06R.22x16x6 22 16 6 7
K06R.24x12x6 24 12 6 7
K06R.24x12x10 24 12 10 11
K06R.24x14x5 24 14 5 6
K06R.24x14x6 24 14 6 7
K06R.24x14x8 24 14 8 9
K06R.24x16x4 24 16 4 4,5
K06R.24x16x6 24 16 6 7
K06R.25x8x6 25 8 6 7
K06R.25x10x10 25 10 10 11
K06R.25x12x8 25 12 8 9
K06R.25x13x8 25 13 8 9
K06R.25x15x5 25 15 5 6
K06R.25x15x6 25 15 6 7
K06R.25x15x8 25 15 8 9
K06R.25x15x10 25 15 10 11
K06R.25x16x5 25 16 5 6
K06R.25x18x5 25 18 5 6
K06R.25x18x5,5 25 18 5,5 6,5
K06R.25x20x3 25 20 3 3,5
K06R.25,4x15,87x4,76 25,4 15,87 4,76 5,26
K06R.25,4x15,87x6,35 25,4 15,87 6,35 7,14
K06R.26x10x8 26 10 8 9
K06R.26x10x9,5 26 10 9,5 10,5
K06R.26x12x10 26 12 10 11
K06R.26x14x6 26 14 6 7
K06R.26x16x5 26 16 5 6
K06R.26x16x6 26 16 6 7
K06R.26x16x8 26 16 8 9
K06R.26x18x5 26 18 5 6
K06R.26x20x5 26 20 5 6
K06R.26x20x6 26 20 6 7
K06R.27x20x6 27 20 6 7
K06R.28x10x10 28 10 10 11
K06R.28x12x10 28 12 10 11
K06R.28x14x7 28 14 7 8
K06R.28x14x10 28 14 10 11
K06R.28x15x8 28 15 8 9
K06R.28x15x10 28 15 10 11
K06R.28x16x6 28 16 6 7
K06R.28x18x5 28 18 5 6
K06R.28x18x6 28 18 6 7
K06R.28x18x8 28 18 8 9
K06R.28x20x4 28 20 4 4,5
K06R.28x20x5 28 20 5 6
K06R.29x16x6 29 16 6 7
K06R.30x10x10 30 10 10 11
K06R.30x13x10 30 13 10 11
K06R.30x15x6 30 15 6 7
K06R.30x15x8 30 15 8 9
K06R.30x15x10 30 15 10 11
K06R.30x18x6 30 18 6 7
K06R.30x18x7,5 30 18 7,5 8,5
K06R.30x18x8,5 30 18 8,5 9,5
K06R.30x18x10 30 18 10 11
K06R.30x20x5 30 20 5 6
K06R.30x20x6 30 20 6 7
K06R.30x20x8 30 20 8 9
K06R.30x20x10 30 20 10 11
K06R.30x22x5 30 22 5 6
K06R.30x22x6 30 22 6 7
K06R.30x22,4x5 30 22,4 5 6
K06R.32x12x10 32 12 10 11
K06R.32x14x8 32 14 8 9
K06R.32x14x10 32 14 10 11
K06R.32x16x10 32 16 10 11
K06R.32x18x7 32 18 7 8
K06R.32x20x6 32 20 6 7
K06R.32x20x 32 20   8,5
K06R.32x22x5 32 22 5 6
K06R.32x22x6 32 22 6 7
K06R.32x22x7 32 22 7 8
K06R.32x22x8 32 22 8 9
K06R.32x24x4 32 24 4 4,5
K06R.32x25x4 32 25 4 4,5
K06R.32x25x7 32 25 7 8
K06R.33x20x6 33 20 6 7
K06R.33x25x4 33 25 4 4,5
K06R.33x25x5 33 25 5 6
K06R.33x25x7 33 25 7 8
K06R.34x18x8 34 18 8 9
K06R.34x19x10 34 19 10 11
K06R.34x22x6 34 22 6 7
K06R.34x22x10 34 22 10 11
K06R.34x24x5 34 24 5 6
K06R.35x12x12 35 12 12 13
K06R.35x18x12 35 18 12 13
K06R.35x20x10 35 20 10 11
K06R.35x25x5 35 25 5 6
K06R.35x25x6 35 25 6 7
K06R.35x25x7 35 25 7 8
K06R.35x25x8 35 25 8 9
K06R.35x27x4 35 27 4 4,5
K06R.35x28x6 35 28 6 7
K06R.35,5x28x5 35,5 28 5 6
K06R.36x20x8 36 20 8 9
K06R.36x20x10 36 20 10 11
K06R.36x28x4 36 28 4 5
K06R.36x28x5 36 28 5 6
K06R.36x28x6 36 28 6 7
K06R.37x25x7 37 25 7 8
K06R.37x30x8 37 30 8 9



Code  D d  H L
K06R.38x22x10 38 22 10 11
K06R.38x25x7 38 25 7 8
K06R.38x25x9 38 25 9 10
K06R.38x26x6 38 26 6 7
K06R.38x27x6 38 27 6 7
K06R.38x28x5 38 28 5 6
K06R.38x28x8 38 28 8 9
K06R.38x28x10 38 28 10 11
K06R.40x20x10 40 20 10 11
K06R.40x20x12 40 20 12 13
K06R.40x24x8 40 24 8 9
K06R.40x24x10 40 24 10 11
K06R.40x25x7,5 40 25 7,5 8,5
K06R.40x25x10 40 25 10 11
K06R.40x25x11 40 25 11 12
K06R.40x28x6 40 28 6 7
K06R.40x28x10 40 28 10 11
K06R.40x30x5 40 30 5 6
K06R.40x30x6 40 30 6 7
K06R.40x30x7 40 30 7 8
K06R.40x30x10 40 30 10 11
K06R.40x30x11,5 40 30 12 12,5
K06R.40x32x4 40 32 4 4,5
K06R.40x32x5 40 32 5 6
K06R.40x32x7 40 32 7 8
K06R.40x32x8 40 32 8 9
K06R.41x31,5x5,3 41 31,5 5,3 6
K06R.41,5x31,5x6 41,5 31,5 6 7
K06R.42x25x8 42 25 8 9
K06R.42x26x8 42 26 8 9
K06R.42x27x10 42 27 10 11
K06R.42x30x10 42 30 10 11
K06R.42x32x6 42 32 6 7
K06R.43x28x10 43 28 10 11
K06R.43x33x6 43 33 6 7
K06R.44x32x6 44 32 6 7
K06R.44x34x5 44 34 5 6
K06R.44x35x7 44 35 7 8
K06R.45x25x10 45 25 10 11
K06R.45x25x12 45 25 12 13
K06R.45x30x10 45 30 10 11
K06R.45x32x10 45 32 10 11
K06R.45x35x6 45 35 6 7
K06R.45x35x10 45 35 10 11
K06R.45x35,5x5 45 35,5 5 6
K06R.46x22x12 46 22 12 13
K06R.46x36x5 46 36 5 6
K06R.46x36x7 46 36 7 8
K06R.47x32x10 47 32 10 11
K06R.47x35x6 47 35 6 7
K06R.48x28x10 48 28 10 11
K06R.48x28x12 48 28 12 13
K06R.48x36x6 48 36 6 7
K06R.49x40x6 49 40 6 7
K06R.50x30x10 50 30 10 11
K06R.50x30x12 50 30 12 13
K06R.50x32x12 50 32 12 13
K06R.50x35x7 50 35 7 8
K06R.50x35x7,5 50 35 7,5 8,5
K06R.50x35x10 50 35 10 11
K06R.50x36x8 50 36 8 9
K06R.50x38x6 50 38 6 7
K06R.50x40x5 50 40 5 6
K06R.50x40x6 50 40 6 7
K06R.50x40x7 50 40 7 8
K06R.50x40x9 50 40 9 10
K06R.50x40x10 50 40 10 11
K06R.50x42x5 50 42 5 6
K06R.50x42x6 50 42 6 7
K06R.50,8x38,1x7,14 50,8 38,1 7,1 7,93
K06R.51x36x7,1 51 36 7,1 8,1
K06R.51x36x10 51 36 10 11
K06R.51x39,7x8 51 39,7 8 9
K06R.52x32x10 52 32 10 11
K06R.52x35x12 52 35 12 13
K06R.52x36x10 52 36 10 11
K06R.52,5x38x9 52,5 38 9 10
K06R.52,5x38x9,5 52,5 38 9,5 10,5
K06R.53x38x10 53 38 10 11
K06R.53,97x44,45x5,34 54 44,5 5,3 6,93
K06R.54x45x5 54 45 5 6
K06R.55x30x12 55 30 12 13
K06R.55x35x10 55 35 10 11
K06R.55x35x12 55 35 12 13
K06R.55x38x10 55 38 10 11
K06R.55x40x9,5 55 40 9,5 10,5
K06R.55x40x10 55 40 10 11
K06R.55x42x8 55 42 8 9
K06R.55x45x6 55 45 6 7
K06R.55x45x10 55 45 10 11
K06R.56x40x10 56 40 10 11
K06R.56x41x8,5 56 41 8,5 9,5
K06R.56x45x7 56 45 7 8
K06R.57x44x9 57 44 9 10
K06R.57x45x6 57 45 6 7
K06R.57,15x41,27x7,93 57,2 41,3 7,9 8,72
K06R.58x38x10 58 38 10 11
K06R.58x38x12 58 38 12 13
K06R.58x45x10 58 45 10 11
K06R.58x46x6 58 46 6 7
K06R.60x35x12 60 35 12 13
K06R.60x40x10 60 40 10 11
K06R.60x40x12 60 40 12 13
K06R.60x45x10 60 45 10 11
K06R.60x48x6 60 48 6 7
K06R.60x50x5 60 50 5 6
K06R.60x50x6 60 50 6 7
K06R.60x50x7 60 50 7 8
K06R.60x50x10 60 50 10 11
K06R.60,32x50,8x4,76 60,3 50,8 4,8 6,35
K06R.62x42x12 62 42 12 13
K06R.62x48x12 62 48 12 13
K06R.62x50x6 62 50 6 7
K06R.63x40x12,5 63 40 13 13,5
K06R.63x43x10 63 43 10 11
K06R.63x45x10 63 45 10 11
K06R.63x45x12 63 45 12 13
K06R.63x48x10 63 48 10 11
K06R.63x50x6 63 50 6 7
K06R.63x50x8 63 50 8 9
K06R.63x51x6 63 51 6 7
K06R.63x53x6 63 53 6 7
K06R.63x53x7,5 63 53 7,5 8,5
K06R.64x51x9 64 51 9 10
K06R.65x40x15 65 40 15 16
K06R.65x45x10 65 45 10 11
K06R.65x45x12 65 45 12 13
K06R.65x50x10 65 50 10 11
K06R.65x50x12 65 50 12 13
K06R.65x55x5 65 55 5 6
K06R.68x48x10 68 48 10 11
K06R.68x48x12 68 48 12 13
K06R.68x50x12 68 50 12 13
K06R.70x46x12 70 46 12 13
K06R.70x50x10 70 50 10 11
K06R.70x50x12 70 50 12 13
K06R.70x55x7,5 70 55 7,5 8,5
K06R.70x55x10 70 55 10 11
K06R.70x55x12 70 55 12 13
K06R.70x56x12 70 56 12 13
K06R.70x58x6 70 58 6 7
K06R.70x60x6 70 60 6 7
K06R.70x60x7 70 60 7 8
K06R.70x60x12 70 60 12 13
K06R.72x50x12 72 50 12 13
K06R.74x50x12 74 50 12 13
K06R.75x50x15 75 50 15 16
K06R.75x55x10 75 55 10 11
K06R.75x55x12 75 55 12 13
K06R.75x60x12 75 60 12 13
K06R.75x65x6 75 65 6 7
K06R.75x65x10 75 65 10 11
K06R.76,2x55,56x9,52 76,2 55,6 9,5 10,3
K06R.78x58x12 78 58 12 13
K06R.80x55x12 80 55 12 13
K06R.80x55x15 80 55 15 16
K06R.80x60x10 80 60 10 11
K06R.80x60x12 80 60 12 13
K06R.80x63x16 80 63 16 17
K06R.80x65x7,5 80 65 7,5 8,5
K06R.80x65x9 80 65 9 10
K06R.80x65x12 80 65 12 13
K06R.80x68x12 80 68 12 13
K06R.80x70x5 80 70 5 6
K06R.80x70x6 80 70 6 7
K06R.80x70x7 80 70 7 8
K06R.80x70x12 80 70 12 13
K06R.80x72x10 80 72 10 11
K06R.82x70x8,5 82 70 8,5 9,5
K06R.82x72x5 82 72 5 6
K06R.82,55x71,2x6,35 82,6 71,2 6,4 7,14
K06R.85x65x12 85 65 12 13
K06R.85x70x7,5 85 70 7,5 8,5
K06R.85x70x8 85 70 8 9
K06R.85x70x12 85 70 12 13


Code  D d  H L
K06R.85x75x12 85 75 12 13
K06R.86,7x60x15 86,7 60 15 16
K06R.88x78x5 88 78 5 6
K06R.90x65x12 90 65 12 13
K06R.90x70x10 90 70 10 11
K06R.90x70x12 90 70 12 13
K06R.90x75x7,5 90 75 7,5 8,5
K06R.90x80x5 90 80 5 6
K06R.90x80x6 90 80 6 7
K06R.90x80x7 90 80 7 8
K06R.90x80x12 90 80 12 13
K06R.92x76x14 92 76 14 15
K06R.92x82x10 92 82 10 11
K06R.95x70x12 95 70 12 13
K06R.95x75x10 95 75 10 11
K06R.95x75x12 95 75 12 13
K06R.99x92x10 99 92 10 11
K06R.100x70x15 100 70 15 16
K06R.100x75x15 100 75 15 16
K06R.100x76x12 100 76 12 13
K06R.100x80x10 100 80 10 11
K06R.100x80x12 100 80 12 13
K06R.100x80x15 100 80 15 16
K06R.100x82x12 100 82 12 13
K06R.100x85x7,5 100 85 7,5 8,5
K06R.100x85x9 100 85 9 10
K06R.100x85x12 100 85 12 13
K06R.100x90x5 100 90 5 6
K06R.105x80x12 105 80 12 13
K06R.105x80x15 105 80 15 16
K06R.105x85x10 105 85 10 11
K06R.105x85x12 105 85 12 13
K06R.105x85x15 105 85 15 16
K06R.105x90x7,5 105 90 7,5 8,5
K06R.110x80x15 110 80 15 16
K06R.110x85x12 110 85 12 13
K06R.110x85x15 110 85 15 16
K06R.110x90x10 110 90 10 11
K06R.110x90x13 110 90 13 14
K06R.110x90x15 110 90 15 16
K06R.110x95x7,5 110 95 7,5 8,5
K06R.110x95x9 110 95 9 10
K06R.110x100x5 110 100 5 6
K06R.115x90x15 115 90 15 16
K06R.115x95x15 115 95 15 16
K06R.120x90x15 120 90 15 16
K06R.120x95x15 120 95 15 16
K06R.120x100x10 120 100 10 11
K06R.120x100x12 120 100 12 13
K06R.120x100x15 120 100 15 16
K06R.124x110x8 124 110 8 9
K06R.125x95x15 125 95 15 16
K06R.125x100x12 125 100 12 13
K06R.125x100x15 125 100 15 16
K06R.130x100x18 130 100 18 19
K06R.130x105x12 130 105 12 13
K06R.132x120x14 132 120 14 15
K06R.135x110x12 135 110 12 13
K06R.135x110x18 135 110 18 19
K06R.135x115x15 135 115 15 16
K06R.135x120x7,5 135 120 7,5 8,5
K06R.140x100x20 140 100 20 21
K06R.140x110x15 140 110 15 16
K06R.140x110x18 140 110 18 19
K06R.140x115x18 140 115 18 19
K06R.140x120x10 140 120 10 11
K06R.140x120x14 140 120 14 15
K06R.140x125x7,5 140 125 7,5 8,5
K06R.140x125x8 140 125 8 9
K06R.140x125x9 140 125 9 10
K06R.145x115x18 145 115 18 19
K06R.145x120x18 145 120 18 19
K06R.150x120x15 150 120 15 16
K06R.150x125x18 150 125 18 19
K06R.150x130x14 150 130 14 15
K06R.150x130x15 150 130 15 16
K06R.150x135x10 150 135 10 11
K06R.154x125x20 154 125 20 21
K06R.155x125x15 155 125 15 16
K06R.155x125x18 155 125 18 19
K06R.155x125x22 155 125 22 23
K06R.158x145x8 158 145 8 9
K06R.160x130x15 160 130 15 16
K06R.160x130x18 160 130 18 19
K06R.160x140x8 160 140 8 9
K06R.165x135x15 165 135 15 16
K06R.170x140x15 170 140 15 16
K06R.170x145x18 170 145 18 19
K06R.171,45x152,4x9,52 171,5 152,4 9,5 10,3
K06R.175x145x18 175 145 18 19
K06R.177,8x146,05x12,7 177,8 146,1 13 14,3
K06R.180x150x15 180 150 15 16
K06R.180x150x15 180 150 15 16
K06R.180x150x18 180 150 18 19
K06R.180x155x18 180 155 18 19
K06R.180x160x15 180 160 15 16
K06R.180x165x9 180 165 9 10
K06R.184,15x152,4x12,7 184,2 152,4 13 14,3
K06R.190x160x15 190 160 15 16
K06R.190x160x22 190 160 22 23
K06R.200x160x20 200 160 20 21
K06R.200x170x15 200 170 15 16
K06R.200x170x22 200 170 22 23
K06R.200x180x10 200 180 10 11
K06R.200x180x15 200 180 15 16
K06R.210x180x22 210 180 22 23
K06R.210x190x15 210 190 15 16
K06R.230x200x15 230 200 15 16
K06R.230x200x15,5 230 200 16 16,5
K06R.230x200x22 230 200 22 23
K06R.240x200x20 240 200 20 21
K06R.240x210x15 240 210 15 16
K06R.250x210x18 250 210 18 19
K06R.250x220x20 250 220 20 21
K06R.250x220x22 250 220 22 23
K06R.250x225x18 250 225 18 19
K06R.250x230x12 250 230 12 13
K06R.260x220x25 260 220 25 26
K06R.260x230x22 260 230 22 23
K06R.270x250x15 270 250 15 16
K06R.270x255x10 270 255 10 11
K06R.275x250x12 275 250 12 13
K06R.280x240x20,5 280 240 21 21,5
K06R.285x255x20 285 255 20 21
K06R.290x250x20 290 250 20 21
K06R.300x260x20 300 260 20 21
K06R.300x270x15 300 270 15 16
K06R.300x270x22 300 270 22 23
K06R.300x280x14 300 280 14 15
K06R.300x290x14 300 290 14 15
K06R.310x280x15 310 280 15 16
K06R.310x280x22 310 280 22 23
K06R.315x290x24 315 290 24 25
K06R.325x300x20 325 300 20 21
K06R.340x300x20 340 300 20 21
K06R.350x320x15 350 320 15 16
K06R.350x320x16 350 320 16 17
K06R.350x320x22 350 320 22 23
K06R.355x342x22 355 342 22 23
K06R.360x320x20 360 320 20 21
K06R.365x341x12 365 341 12 13
K06R.380x340x20 380 340 20 21
K06R.385x355x18 385 355 18 19
K06R.390x360x22 390 360 22 23
K06R.400x360x30 400 360 30 31
K06R.400x370x22 400 370 22 23
K06R.400x370x24 400 370 24 25
K06R.430x400x22 430 400 22 23
K06R.440x400x20 440 400 20 21
K06R.450x420x20 450 420 20 21
K06R.450x420x22 450 420 22 23
K06R.450x420x25 450 420 25 26
K06R.470x445x13 470 445 13 14
K06R.480x450x15 480 450 15 16
K06R.500x450x25 500 450 25 26
K06R.500x460x28 500 460 28 29
K06R.528x480x30 528 480 30 31
K06R.530x500x25 530 500 25 26
K06R.540x500x20 540 500 20 21
K06R.570x530x20 570 530 20 21
K06R.580x540x20 580 540 20 21
K06R.600x550x25 600 550 25 26
K06R.600x570x15 600 570 15 16
K06R.600x570x15,5 600 570 16 16,5
K06R.630x580x25 630 580 25 26
K06R.630x580x35 630 580 35 36
K06R.680x650x15 680 650 15 16
K06R.736x700x21 736 700 21 22
K06R.736,6x685,8x38,1 736,6 685,8 38 39,7
K06R.750x710x40 750 710 40 42
K06R.750x720x18 750 720 18 19
K06R.775x725x25 775 725 25 26
K06R.916x880x21 916 880 21 22





CHÍNH SÁCH BẢO MẬT

CHÍNH SÁCH CHUNG

Công ty TNHH Goăng phớt Việt Áo- GPVA Co., Ltd. Số ĐKKD 0105834316 cấp ngày 26/03/2012.
Địa chỉ VP: 192 ngõ Xã Đàn II Phường Nam Đồng Quận Đống Đa - TP.Hà Nội
Điện thoại : 024 3577 2916 Di động: 09 0354 7800. Email: admin@gpva.vn

Tổng truy cập:    1395609
