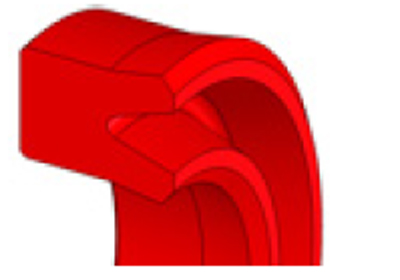

K06P

MÔ TẢ:

-Dùng cho thủy lực, lực tác động một chiều.

-Thiết kế phớt biên dạng đối xứng, đường kính trong của phớt lắp căng trên rãnh, sử dụng cho các ứng dụng chung, dễ lắp  đối với các xi lanh có đường kính nhỏ.

ĐIỀU KIỆN LÀM VIỆC:

Vật liệu chế tạo

Nhiệt độ làm việc

Vận tốc (max)

Áp suất (bar/psi)

PU

-30...+110˚C

0,5 m/s

400/5800

HPU

-20...+110˚C

0,5 m/s

400/5800

SPU

-20...+110˚C

0,7 m/s

400/5800

NBR

-30...+100˚C

0,5 m/s

160/2300

FKM

-20...+200˚C

0,5 m/s

160/2300

EPDM

-50...+150˚C

0,5 m/s

160/2300

-Lựa chọn vật liệu theo môi trường làm việc tại mục  VẬT LIỆU

CÁC MÃ BIÊN DẠNG SỬ DỤNG THAY THẾ:

TTU - MU/P - RSS - RUB - T20 - AUN - CG - 601 - MA25 - KN25 - SN25 - UP - RPS - K21 - MSUC - PUM - UPI - USI - CPU - MUU - DSU - HU - RP-70 - U-S106 - U-K106

Đặt hàng:
Những thông tin (*) là bắt buộc
Họ tên (*):

Địa chỉ (*):
Email (*):
Điện thoại (*):
Sản phẩm :
Yêu cầu:
Mã bảo vệ (*):

Chi tiết sản phẩm



Phớt K06-P dùng thay thế tương đương các mã bên dạng: TTU - MU/P - RSS - RUB - T20 - AUN - CG - 601 - MA25 - KN25 - SN25 - UP - RPS - K21 - MSUC - PUM - UPI - USI - CPU - MUU - DSU - HU - RP-70 - U-S106 - U-K106

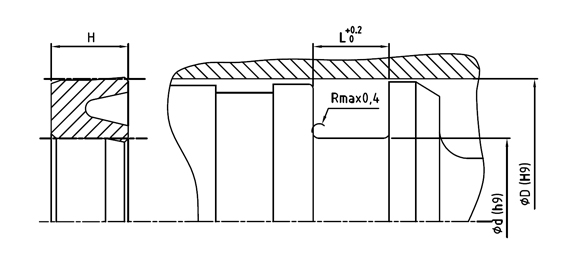

KÍCH THƯỚC TIÊU CHUẨN (mm)



Code  D d  H L
K06P.14x7x3.5 14 7 3.5 4.2
K06P.14x7x4 14 7 4 5
K06P.14x10x3 14 10 3 3.5
K06P.14x7x3.5 14 7 3.5 4.2
K06P.14x7x4 14 7 4 5
K06P.14x10x3 14 10 3 3.5
K06P.15x8x7 15 8 7 8
K06P.15x9x8 15 9 8 9
K06P.15x10x4 15 10 4 4.5
K06P.16x10x4 16 10 4 5
K06P.16x10x5 16 10 5 6
K06P.16x10x6 16 10 6 6.5
K06P.17x11x4 17 11 4 5
K06P.18x8x9 18 8 9 10
K06P.18x10x5.5 18 10 5.5 6
K06P.18x10x5 18 10 5 6
K06P.18x10x6 18 10 6 7
K06P.18x10x8 18 10 8 9
K06P.18x12x4 18 12 4 5
K06P.18x12x5 18 12 5 5.5
K06P.18x12x6 18 12 6 7
K06P.19x9x6 19 9 6 7
K06P.19.05x12.7x3.96 19.05 12.7 3.96 5.56
K06P.20x10x5 20 10 5 6
K06P.20x10x6 20 10 6 7
K06P.20x10x8 20 10 8 9
K06P.20x12x5 20 12 5 6
K06P.20x12x5.5 20 12 5.5 6.5
K06P.20x12x7 20 12 7 8
K06P.20x12x8 20 12 8 9
K06P.20x13.5x4 20 13.5 4 5
K06P.20x14x4 20 14 4 5
K06P.20x14x4.8 20 14 4.8 5.3
K06P.20x14x5 20 14 5 6
K06P.20x14x6 20 14 6 7
K06P.20.5x11x6 20.5 11 6 7
K06P.20.5x11x6.5 20.5 11 6.5 7
K06P.22x8x8 22 8 8 9
K06P.22x10x6 22 10 6 7
K06P.22x10x8 22 10 8 9
K06P.22x12x5 22 12 5 6
K06P.22x12x6 22 12 6 7
K06P.22x12x7 22 12 7 8
K06P.22x12x8 22 12 8 9
K06P.22x14x4 22 14 4 4.5
K06P.22x14x4.5 22 14 4.5 5
K06P.22x14x5 22 14 5 6
K06P.22x14x6 22 14 6 7
K06P.22x14x8 22 14 8 9
K06P.22x14x11 22 14 11 12
K06P.22x15x4 22 15 4 5
K06P.22x15x7 22 15 7 8
K06P.22x16x4 22 16 4 4.5
K06P.22x16x5 22 16 5 5.5
K06P.24x12x6 24 12 6 7
K06P.24x12x8 24 12 8 9
K06P.24x12x9 24 12 9 10
K06P.24x12x10 24 12 10 11
K06P.24x14x6 24 14 6 7
K06P.24x14x8 24 14 8 9
K06P.24x16x5 24 16 5 6
K06P.24x16x9 24 16 9 10
K06P.24x16.5x10 24 16.5 10 11
K06P.24x18x8 24 18 8 9
K06P.25x10x10 25 10 10 11
K06P.25x12x8 25 12 8 9
K06P.25x12x10 25 12 10 11
K06P.25x15x5 25 15 5 6
K06P.25x15x6 25 15 6 7
K06P.25x15x8 25 15 8 9
K06P.25x15x10 25 15 10 11
K06P.25x16x8 25 16 8 9
K06P.25x17x4 25 17 4 5
K06P.25x17x8 25 17 8 9
K06P.25x17x10 25 17 10 11
K06P.25x18x5 25 18 5 5.5
K06P.25x18x6 25 18 6 7
K06P.25x19x6 25 19 6 7
K06P.25.4x19.05x6.35 25.4 19.05 6.35 7.14
K06P.26x14x8 26 14 8 9
K06P.26x16x5 26 16 5 6
K06P.26x16x6 26 16 6 7
K06P.26x16x8 26 16 8 9
K06P.26x16x10 26 16 10 11
K06P.26x18x4 26 18 4 4.5
K06P.26x18x5 26 18 5 6
K06P.26x18x6.5 26 18 6.5 7.5
K06P.26x18x8 26 18 8 9
K06P.26x18x8.5 26 18 8.5 9.5
K06P.26x20x4 26 20 4 5
K06P.27x12x7.5 27 12 7.5 8.5
K06P.27x15x6 27 15 6 7
K06P.27x19x5 27 19 5 6
K06P.27x20x6 27 20 6 7
K06P.28x14x10 28 14 10 11
K06P.28x15x8 28 15 8 9
K06P.28x15x10 28 15 10 11
K06P.28x16x6 28 16 6 7
K06P.28x16x10 28 16 10 11
K06P.28x18x8 28 18 8 9
K06P.28x20x4 28 20 4 5
K06P.28x20x5 28 20 5 6
K06P.28x20x6 28 20 6 7
K06P.28x20x8 28 20 8 9
K06P.28x22x4 28 22 4 5
K06P.28x22x8 28 22 8 9
K06P.29x20x5 29 20 5 5.5
K06P.30x15x6 30 15 6 7
K06P.30x15x8 30 15 8 9
K06P.30x15x10 30 15 10 11
K06P.30x18x8 30 18 8 9
K06P.30x18x10 30 18 10 11
K06P.30x20x6 30 20 6 7
K06P.30x20x8 30 20 8 9
K06P.30x20x10 30 20 10 11
K06P.30x22x4 30 22 4 5
K06P.30x22x5 30 22 5 6
K06P.30x22x6 30 22 6 7
K06P.30x22x7 30 22 7 7.5
K06P.30x22x10 30 22 10 11
K06P.31.75x25.4x4.76 31.75 25.4 4.76 6.35
K06P.32x10x10 32 10 10 11
K06P.32x16x8 32 16 8 9
K06P.32x17x10 32 17 10 11
K06P.32x18x7 32 18 7 8
K06P.32x20x5 32 20 5 6
K06P.32x20x6 32 20 6 7
K06P.32x20x7.5 32 20 7.5 8.5
K06P.32x20x8 32 20 8 9
K06P.32x22x5 32 22 5 6
K06P.32x22x7 32 22 7 8
K06P.32x22x8 32 22 8 9
K06P.32x22x10 32 22 10 11
K06P.32x24x4 32 24 4 5
K06P.32x24x7 32 24 7 7.5
K06P.32x24x7.5 32 24 7.5 8
K06P.32x25x4 32 25 4 5
K06P.33x20x8 33 20 8 9
K06P.33x25x4 33 25 4 5
K06P.33x25x5 33 25 5 6
K06P.33x25x7 33 25 7 7.5
K06P.33x25x8 33 25 8 9
K06P.34x18x8 34 18 8 9
K06P.34x22x6 34 22 6 7
K06P.34x22x7 34 22 7 8
K06P.34x25x7 34 25 7 8
K06P.34x27x7 34 27 7 8
K06P.34.92x25.4x7.93 34.92 25.4 7.93 8.72
K06P.35x17x10 35 17 10 11
K06P.35x18x8 35 18 8 9
K06P.35x20x8 35 20 8 9
K06P.35x20x10 35 20 10 11
K06P.35x20x12 35 20 12 13
K06P.35x22x5 35 22 5 6
K06P.35x22x10 35 22 10 11
K06P.35x25x5 35 25 5 5.5
K06P.35x25x6 35 25 6 7
K06P.35x25x7 35 25 7 8
K06P.35x25x8 35 25 8 9
K06P.35x25x10 35 25 10 11
K06P.35x27x4 35 27 4 4.5
K06P.35x28x5 35 28 5 5.5
K06P.35.5x22x10 35.5 22 10 11
K06P.35.5x28x5 35.5 28 5 6
K06P.36x20x8 36 20 8 9
K06P.36x20x10 36 20 10 11
K06P.36x27x6 36 27 6 7
K06P.36x28x4 36 28 4 5
K06P.36x28x5 36 28 5 6
K06P.36x28x6 36 28 6 7
K06P.36x28x6.5 36 28 6.5 7.5
K06P.37x21x12 37 21 12 13
K06P.37x25x7 37 25 7 8
K06P.37x30x5.8 37 30 5.8 6.8
K06P.37x30x6 37 30 6 7
K06P.38x25x9.5 38 25 9.5 10.5
K06P.38x25x10 38 25 10 11
K06P.38x26x8 38 26 8 9
K06P.38x27x6 38 27 6 7
K06P.38x28x8 38 28 8 9
K06P.38x28x10 38 28 10 11
K06P.38x30x4 38 30 4 5
K06P.38x30x5 38 30 5 6
K06P.38x30x6 38 30 6 6.5
K06P.38x30x7 38 30 7 8
K06P.38.1x25.4x6.35 38.1 25.4 6.35 7.14
K06P.38.1x28.57x7.93 38.1 28.57 7.93 8.72
K06P.39x20x10.5 39 20 10.5 11
K06P.39x28x7.25 39 28 7.25 8.3
K06P.40x20x10 40 20 10 11
K06P.40x20x12 40 20 12 13
K06P.40x22x10 40 22 10 11
K06P.40x24x8 40 24 8 9
K06P.40x25x10 40 25 10 11
K06P.40x28x6 40 28 6 7
K06P.40x28x8 40 28 8 9
K06P.40x28x10 40 28 10 11
K06P.40x30x5 40 30 5 5.5
K06P.40x30x5.5 40 30 5.5 6.5
K06P.40x30x6 40 30 6 7
K06P.40x30x6.5 40 30 6.5 7.5
K06P.40x30x7 40 30 7 8
K06P.40x30x8 40 30 8 9
K06P.40x30x10 40 30 10 11
K06P.40x32x4 40 32 4 5
K06P.40x32x5 40 32 5 6
K06P.40x32x5.5 40 32 5.5 6.5
K06P.40x32x6 40 32 6 7
K06P.40x32x7 40 32 7 8
K06P.40x32x8 40 32 8 9
K06P.40x32x10 40 32 10 11
K06P.42x25x7 42 25 7 8
K06P.42x30x9 42 30 9 10
K06P.42x30x10 42 30 10 11
K06P.42x32x6 42 32 6 7
K06P.42x32x10 42 32 10 11
K06P.43x20x12 43 20 12 13
K06P.43x28x10 43 28 10 11
K06P.43x33x10 43 33 10 11
K06P.43x35x6 43 35 6 7
K06P.43x35x7 43 35 7 8
K06P.43x35x8 43 35 8 9
K06P.43.5x35.5x8 43.5 35.5 8 9
K06P.44x28x8 44 28 8 9
K06P.44x36x4 44 36 4 5
K06P.44x36x5.7 44 36 5.7 6.5
K06P.44.45x31.75x9.52 44.45 31.75 9.52 10.31
K06P.45x25x10 45 25 10 11
K06P.45x30x9 45 30 9 10
K06P.45x30x10 45 30 10 11
K06P.45x32x10 45 32 10 11
K06P.45x34x7 45 34 7 8
K06P.45x34x9 45 34 9 10
K06P.45x35x6 45 35 6 7
K06P.45x35x8 45 35 8 9
K06P.45x35x10 45 35 10 11
K06P.45x35.5x6 45 35.5 6 7
K06P.45x36x10 45 36 10 11
K06P.45x38x5 45 38 5 5.5
K06P.45x38x6 45 38 6 7
K06P.45x38x8 45 38 8 9
K06P.46x28x10 46 28 10 11
K06P.46x30x10 46 30 10 11
K06P.46x36x7 46 36 7 8
K06P.46x36x10 46 36 10 11
K06P.46x38x6.5 46 38 6.5 7.5
K06P.47x26x12 47 26 12 13
K06P.47x32x10 47 32 10 11
K06P.47x35x10 47 35 10 11
K06P.47x39x6 47 39 6 7

KÍCH THƯỚC TIÊU CHUẨN (mm)



Code  D d  H L
K06P.47.62x38.1x7.93 47.62 38.1 7.93 8.72
K06P.48x32x7 48 32 7 8
K06P.48x35x10 48 35 10 11
K06P.48x40x5 48 40 5 6
K06P.48x40x8 48 40 8 9
K06P.48x40x11 48 40 11 12
K06P.50x30x10 50 30 10 11
K06P.50x30x12 50 30 12 13
K06P.50x32x10 50 32 10 11
K06P.50x32x12 50 32 12 13
K06P.50x34x14 50 34 14 15
K06P.50x35x7 50 35 7 8
K06P.50x35x8 50 35 8 9
K06P.50x35x10 50 35 10 11
K06P.50x36x8 50 36 8 9
K06P.50x36x10 50 36 10 11
K06P.50x38x6 50 38 6 7
K06P.50x38x9 50 38 9 10
K06P.50x38x10 50 38 10 11
K06P.50x40x5 50 40 5 6
K06P.50x40x6 50 40 6 7
K06P.50x40x6.5 50 40 6.5 7.5
K06P.50x40x7.2 50 40 7.2 8
K06P.50x40x7 50 40 7 8
K06P.50x40x8 50 40 8 9
K06P.50x40x9 50 40 9 10
K06P.50x40x10 50 40 10 11
K06P.50x42x8 50 42 8 9
K06P.50.8x38.1x9.52 50.8 38.1 9.52 10.31
K06P.51x36x10 51 36 10 11
K06P.52x32x10 52 32 10 11
K06P.52x42x6 52 42 6 7
K06P.52x42x9 52 42 9 10
K06P.52x42x10 52 42 10 11
K06P.53x45x5.7 53 45 5.7 6.5
K06P.53x45x8 53 45 8 9
K06P.53x45x12 53 45 12 13
K06P.55x35x10 55 35 10 11
K06P.55x35x12 55 35 12 13
K06P.55x38x10 55 38 10 11
K06P.55x40x10 55 40 10 11
K06P.55x45x5 55 45 5 6
K06P.55x45x6 55 45 6 7
K06P.55x45x6.5 55 45 6.5 7.5
K06P.55x45x7 55 45 7 8
K06P.55x45x10 55 45 10 11
K06P.55x45x11 55 45 11 12
K06P.55x45x12 55 45 12 13
K06P.56x36x10 56 36 10 11
K06P.56x40x8 56 40 8 9
K06P.56x40x10 56 40 10 11
K06P.56x45x7 56 45 7 8
K06P.57x50x10 57 50 10 11
K06P.57.15x44.45x9.52 57.15 44.45 9.52 10.31
K06P.57.15x47.62x9.52 57.15 47.62 9.52 10.31
K06P.57.7x45x9.5 57.7 45 9.5 10.5
K06P.58x38x10 58 38 10 11
K06P.58x48x10 58 48 10 11
K06P.58x50x8 58 50 8 9
K06P.60x40x10 60 40 10 11
K06P.60x40x12 60 40 12 13
K06P.60x40x13 60 40 13 14
K06P.60x40x18 60 40 18 19
K06P.60x45x10 60 45 10 11
K06P.60x48x9 60 48 9 10
K06P.60x50x5 60 50 5 6
K06P.60x50x6 60 50 6 7
K06P.60x50x7.2 60 50 7.2 8
K06P.60x50x8 60 50 8 9
K06P.60x50x10 60 50 10 11
K06P.60x50x11 60 50 11 12
K06P.60x50x12 60 50 12 13
K06P.60x50x13 60 50 13 14
K06P.60.32x50.8x6.35 60.32 50.8 6.35 7.14
K06P.60.32x50.8x7.93 60.32 50.8 7.93 8.72
K06P.60.32x50.8x9.52 60.32 50.8 9.52 10.31
K06P.62x42x12 62 42 12 13
K06P.62x50x9 62 50 9 10
K06P.62x52x12 62 52 12 13
K06P.63x45x10 63 45 10 11
K06P.63x45x12 63 45 12 13
K06P.63x48x10 63 48 10 11
K06P.63x50x6 63 50 6 7
K06P.63x50x8 63 50 8 9
K06P.63x50x9 63 50 9 10
K06P.63x50x10 63 50 10 11
K06P.63x53x5 63 53 5 6
K06P.63x53x6.5 63 53 6.5 7.5
K06P.63x53x10 63 53 10 11
K06P.63x53x12 63 53 12 13
K06P.63.5x50.8x9.52 63.5 50.8 9.52 10.31
K06P.64x48x12 64 48 12 13
K06P.65x40x10 65 40 10 11
K06P.65x40x12 65 40 12 13
K06P.65x40x18.7 65 40 18.7 20
K06P.65x45x10 65 45 10 11
K06P.65x45x12 65 45 12 13
K06P.65x48x10 65 48 10 11
K06P.65x50x10 65 50 10 11
K06P.65x50x12 65 50 12 13
K06P.65x55x5 65 55 5 6
K06P.65x55x6 65 55 6 7
K06P.65x55x10 65 55 10 11
K06P.65x55x12 65 55 12 13
K06P.66x56x5 66 56 5 6
K06P.66x56x6.7 66 56 6.7 7.5
K06P.68x48x10 68 48 10 11
K06P.68x60x8 68 60 8 9
K06P.68x60x10 68 60 10 11
K06P.69.85x50.8x12.7 69.85 50.8 12.7 14.3
K06P.69.85x57.15x9.52 69.85 57.15 9.52 10.31
K06P.70x36x10 70 36 10 11
K06P.70x40x15 70 40 15 16
K06P.70x45x12 70 45 12 13
K06P.70x48x10 70 48 10 11
K06P.70x50x8 70 50 8 9
K06P.70x50x10 70 50 10 11
K06P.70x50x12 70 50 12 13
K06P.70x50x18 70 50 18 19
K06P.70x55x8 70 55 8 9
K06P.70x55x10 70 55 10 11
K06P.70x55x12 70 55 12 13
K06P.70x59x8 70 59 8 9
K06P.70x60x5 70 60 5 6
K06P.70x60x6 70 60 6 7
K06P.70x60x8 70 60 8 9
K06P.70x60x10 70 60 10 11
K06P.70x60x12 70 60 12 13
K06P.70x60x13 70 60 13 14
K06P.71x56x10 71 56 10 11
K06P.72x42x10 72 42 10 11
K06P.72x50x10 72 50 10 11
K06P.72x54x10 72 54 10 11
K06P.73x63x5 73 63 5 6
K06P.74x50x15 74 50 15 16
K06P.74x58x13 74 58 13 14
K06P.75x40x10.5 75 40 10.5 11
K06P.75x50x8 75 50 8 9
K06P.75x50x12 75 50 12 13
K06P.75x55x10 75 55 10 11
K06P.75x55x12 75 55 12 13
K06P.75x60x8 75 60 8 9
K06P.75x60x10 75 60 10 11
K06P.75x60x12 75 60 12 13
K06P.75x63x9 75 63 9 10
K06P.75x63x10 75 63 10 11
K06P.75x63x12 75 63 12 13
K06P.75x65x6 75 65 6 7
K06P.75x65x10 75 65 10 11
K06P.75x65x12 75 65 12 13
K06P.76x66x8 76 66 8 9
K06P.76.2x57.15x12.7 76.2 57.15 12.7 14.3
K06P.76.2x53.5x9.52 76.2 53.5 9.52 10.31
K06P.77x67x10 77 67 10 11
K06P.77x67x12 77 67 12 13
K06P.78x63x10 78 63 10 11
K06P.78x68x12 78 68 12 13
K06P.78x70x13.5 78 70 13.5 14.5
K06P.80x55x12 80 55 12 13
K06P.80x55x18 80 55 18 19
K06P.80x60x10 80 60 10 11
K06P.80x60x12 80 60 12 13
K06P.80x60x18 80 60 18 19
K06P.80x63x9 80 63 9 10
K06P.80x63x10 80 63 10 11
K06P.80x64x8 80 64 8 9
K06P.80x65x10 80 65 10 11
K06P.80x65x11 80 65 11 12
K06P.80x65x12 80 65 12 13
K06P.80x66x10 80 66 10 11
K06P.80x70x5 80 70 5 6
K06P.80x70x6 80 70 6 7
K06P.80x70x7 80 70 7 8
K06P.80x70x8 80 70 8 9
K06P.80x70x10 80 70 10 11
K06P.80x70x12 80 70 12 13
K06P.81x59x10 81 59 10 11
K06P.82x70x9.5 82 70 9.5 10.5
K06P.82x70x10 82 70 10 11
K06P.82.55x63.5x12.7 82.55 63.5 12.7 14.3
K06P.83x63x15 83 63 15 16
K06P.85x60x10 85 60 10 11
K06P.85x60x12 85 60 12 13
K06P.85x60x12.5 85 60 12.5 13.5
K06P.85x65x10 85 65 10 11
K06P.85x65x12 85 65 12 13
K06P.85x70x10 85 70 10 11
K06P.85x70x12 85 70 12 13
K06P.85x75x10 85 75 10 11
K06P.85x75x12 85 75 12 13
K06P.88.9x69.85x11.7 88.9 69.85 11.7 12.7
K06P.88.9x76.2x9.52 88.9 76.2 9.52 10.31
K06P.90x60x15 90 60 15 16
K06P.90x65x12 90 65 12 13
K06P.90x65x18 90 65 18 19
K06P.90x70x10 90 70 10 11
K06P.90x70x12 90 70 12 13
K06P.90x70x18 90 70 18 19
K06P.90x75x7.5 90 75 7.5 8.5
K06P.90x75x9 90 75 9 10
K06P.90x75x10 90 75 10 11
K06P.90x75x12 90 75 12 13
K06P.90x80x5 90 80 5 6
K06P.90x80x6 90 80 6 7
K06P.90x80x8 90 80 8 9
K06P.90x80x10 90 80 10 11
K06P.90x80x12 90 80 12 13
K06P.90x80x13.5 90 80 13.5 14.5
K06P.92x82x10 92 82 10 11
K06P.93x78x10.5 93 78 10.5 11.5
K06P.95x70x12 95 70 12 13
K06P.95x75x10 95 75 10 11
K06P.95x75x12 95 75 12 13
K06P.95x80x9 95 80 9 10
K06P.95x80x12 95 80 12 13
K06P.95x85x8.5 95 85 8.5 9.5
K06P.95x85x9.5 95 85 9.5 10.5
K06P.95x85x12 95 85 12 13
K06P.96x72x12 96 72 12 13
K06P.98x83x13.5 98 83 13.5 14.5
K06P.100x75x15 100 75 15 16
K06P.100x78x15 100 78 15 16
K06P.100x80x10 100 80 10 11
K06P.100x80x12 100 80 12 13
K06P.100x80x18 100 80 18 19
K06P.100x84x13.5 100 84 13.5 14.5
K06P.100x85x8 100 85 8 9
K06P.100x85x9 100 85 9 10
K06P.100x85x11 100 85 11 12
K06P.100x85x12 100 85 12 13
K06P.100x90x5 100 90 5 6
K06P.100x90x7 100 90 7 8
K06P.100x90x8 100 90 8 9
K06P.100x90x10 100 90 10 11
K06P.100x90x12 100 90 12 13
K06P.101.6x76.2x12.7 101.6 76.2 12.7 14.3
K06P.101.6x88.9x9.52 101.6 88.9 9.52 10.31
K06P.104.77x88.9x7.93 104.77 88.9 7.93 8.72
K06P.105x80x12 105 80 12 13
K06P.105x85x12 105 85 12 13
K06P.105x85x18 105 85 18 19
K06P.105x90x9 105 90 9 10
K06P.105x90x12 105 90 12 13
K06P.105x95x12 105 95 12 13
K06P.105x96x11 105 96 11 12
K06P.108x98x10 108 98 10 11
K06P.110x85x12 110 85 12 13
K06P.110x90x10 110 90 10 11
K06P.110x90x12 110 90 12 13
K06P.110x90x18 110 90 18 19

KÍCH THƯỚC TIÊU CHUẨN (mm)



Code  D d  H L
K06P.110x95x9 110 95 9 10
K06P.110x95x10 110 95 10 11
K06P.110x95x12 110 95 12 13
K06P.110x95x15 110 95 15 16
K06P.110x100x5 110 100 5 6
K06P.110x100x8 110 100 8 9
K06P.112x95x11 112 95 11 12
K06P.115x85x15 115 85 15 16
K06P.115x90x12 115 90 12 13
K06P.115x90x15 115 90 15 16
K06P.115x90x22 115 90 22 23
K06P.115x95x12 115 95 12 13
K06P.115x95x18 115 95 18 19
K06P.115x100x9 115 100 9 10
K06P.115x100x12 115 100 12 13
K06P.120x90x15 120 90 15 16
K06P.120x100x10 120 100 10 11
K06P.120x100x12 120 100 12 13
K06P.120x100x15 120 100 15 16
K06P.120x100x18 120 100 18 19
K06P.120x105x8 120 105 8 9
K06P.120x105x15 120 105 15 16
K06P.120x106x8.5 120 106 8.5 9.5
K06P.125x100x12 125 100 12 13
K06P.125x100x15 125 100 15 16
K06P.125x105x10 125 105 10 11
K06P.125x105x12 125 105 12 13
K06P.125x105x14 125 105 14 15
K06P.125x105x15 125 105 15 16
K06P.125x110x12 125 110 12 13
K06P.125x110x15 125 110 15 16
K06P.125x113x9.5 125 113 9.5 10.5
K06P.125x115x15 125 115 15 16
K06P.126x115x15 126 115 15 16
K06P.127x114.3x14.5 127 114.3 14.5 16
K06P.130x100x12 130 100 12 13
K06P.130x100x15 130 100 15 16
K06P.130x100x18 130 100 18 19
K06P.130x105x12 130 105 12 13
K06P.130x110x10 130 110 10 11
K06P.130x110x12 130 110 12 13
K06P.130x110x15 130 110 15 16
K06P.130x110x18 130 110 18 19
K06P.130x115x10 130 115 10 11
K06P.130x115x15 130 115 15 16
K06P.130x120x5 130 120 5 6
K06P.130x120x14 130 120 14 15
K06P.130.17x114.3x9.52 130.17 114.3 9.52 10.31
K06P.135x100x16 135 100 16 17
K06P.135x110x18 135 110 18 19
K06P.135x115x12 135 115 12 13
K06P.135x115x15 135 115 15 16
K06P.135x120x15 135 120 15 16
K06P.140x110x18 140 110 18 19
K06P.140x115x15 140 115 15 16
K06P.140x115x22 140 115 22 23
K06P.140x120x10 140 120 10 11
K06P.140x120x12 140 120 12 13
K06P.140x120x15 140 120 15 16
K06P.140x125x11 140 125 11 12
K06P.140x125x12 140 125 12 13
K06P.140x125x15 140 125 15 16
K06P.145x115x18 145 115 18 19
K06P.145x125x10 145 125 10 11
K06P.145x125x15 145 125 15 16
K06P.145x125x18 145 125 18 19
K06P.146x136x6 146 136 6 7
K06P.146.05x127x9.52 146.05 127 9.52 10.31
K06P.150x120x15 150 120 15 16
K06P.150x125x12 150 125 12 13
K06P.150x130x10 150 130 10 11
K06P.150x130x15 150 130 15 16
K06P.150x135x15 150 135 15 16
K06P.150x140x5 150 140 5 6
K06P.150x140x15 150 140 15 16
K06P.152x142x6 152 142 6 7
K06P.152.4x139.7x9.52 152.4 139.7 9.52 10.31
K06P.155x125x15 155 125 15 16
K06P.155x135x15 155 135 15 16
K06P.155x140x15 155 140 15 16
K06P.158x138x12 158 138 12 13
K06P.160x130x18 160 130 18 19
K06P.160x135x15 160 135 15 16
K06P.160x140x10 160 140 10 11
K06P.160x140x12 160 140 12 13
K06P.160x140x15 160 140 15 16
K06P.160x145x9 160 145 9 10
K06P.160x146x9 160 146 9 10
K06P.165x145x15 165 145 15 16
K06P.170x140x15 170 140 15 16
K06P.170x146x14 170 146 14 15
K06P.170x150x15 170 150 15 16
K06P.170x150x18 170 150 18 19
K06P.170x160x5 170 160 5 6
K06P.175x155x15 175 155 15 16
K06P.175x160x7.5 175 160 7.5 8.5
K06P.175x160x15 175 160 15 16
K06P.177.8x152.4x12.7 177.8 152.4 12.7 14.3
K06P.180x150x15 180 150 15 16
K06P.180x150x18 180 150 18 19
K06P.180x155x15 180 155 15 16
K06P.180x160x15 180 160 15 16
K06P.183x170x8.5 183 170 8.5 9.5
K06P.185x160x15 185 160 15 16
K06P.185x170x14.7 185 170 14.7 16
K06P.187x175x9.5 187 175 9.5 10.5
K06P.190x160x12 190 160 12 13
K06P.190x160x15 190 160 15 16
K06P.190x160x18 190 160 18 19
K06P.190x160x19 190 160 19 20
K06P.190x165x15 190 165 15 16
K06P.190x170x15 190 170 15 16
K06P.195x170x15 195 170 15 16
K06P.200x170x15 200 170 15 16
K06P.200x170x18 200 170 18 19
K06P.200x175x15 200 175 15 16
K06P.200x180x15 200 180 15 16
K06P.200x180x18 200 180 18 19
K06P.200x182x25 200 182 25 26
K06P.200x185x7.5 200 185 7.5 8.5
K06P.205x185x15 205 185 15 16
K06P.210x180x22 210 180 22 23
K06P.210x190x15 210 190 15 16
K06P.215x170x20 215 170 20 21
K06P.215x175x20 215 175 20 21
K06P.220x180x20 220 180 20 21
K06P.220x190x15 220 190 15 16
K06P.220x190x18 220 190 18 19
K06P.220x190x26 220 190 26 27
K06P.220x200x10 220 200 10 11
K06P.220x200x15 220 200 15 16
K06P.225x200x15 225 200 15 16
K06P.225x200x18 225 200 18 19
K06P.230x200x15 230 200 15 16
K06P.230x200x17 230 200 17 18
K06P.230x200x18 230 200 18 19
K06P.230x200x22 230 200 22 23
K06P.230x210x15 230 210 15 16
K06P.235x200x9 235 200 9 10
K06P.235x200x20 235 200 20 21
K06P.235x205x18 235 205 18 19
K06P.235x220x9 235 220 9 10
K06P.237x212x18 237 212 18 19
K06P.240x200x15 240 200 15 16
K06P.240x210x18 240 210 18 19
K06P.240x220x15 240 220 15 16
K06P.245x215x18 245 215 18 19
K06P.245x225x15 245 225 15 16
K06P.247x235x9 247 235 9 10
K06P.250x220x15 250 220 15 16
K06P.250x220x18 250 220 18 19
K06P.250x220x20 250 220 20 21
K06P.250x230x15 250 230 15 16
K06P.260x220x20 260 220 20 21
K06P.260x240x12 260 240 12 13
K06P.260x240x17 260 240 17 18
K06P.261x236x18 261 236 18 19
K06P.265x240x18 265 240 18 19
K06P.265x245x15 265 245 15 16
K06P.268x240x18 268 240 18 19
K06P.270x240x15 270 240 15 16
K06P.270x240x18 270 240 18 19
K06P.270x245x15 270 245 15 16
K06P.270x250x16 270 250 16 17
K06P.280x240x20 280 240 20 21
K06P.280x250x18 280 250 18 19
K06P.280x250x19 280 250 19 20
K06P.280x250x22 280 250 22 23
K06P.280x260x15 280 260 15 16
K06P.290x240x18 290 240 18 19
K06P.290x260x18 290 260 18 19
K06P.290x265x17 290 265 17 18
K06P.290x270x17 290 270 17 18
K06P.300x260x20 300 260 20 21
K06P.300x270x15 300 270 15 16
K06P.300x270x22 300 270 22 23
K06P.300x280x15 300 280 15 16
K06P.310x280x18 310 280 18 19
K06P.310x290x12 310 290 12 13
K06P.320x190x22 320 190 22 23
K06P.320x290x21 320 290 21 22
K06P.320x290x22 320 290 22 23
K06P.320x295x18 320 295 18 19
K06P.320x300x15 320 300 15 16
K06P.320x305x17 320 305 17 18
K06P.330x300x18 330 300 18 19
K06P.330x300x22 330 300 22 23
K06P.330x310x17 330 310 17 18
K06P.338.25x304.8x25.4 338.25 304.8 25.4 26.59
K06P.340x320x15 340 320 15 16
K06P.343.8x304.8x25.4 343.8 304.8 25.4 26.59
K06P.344.6x304.8x25.4 344.6 304.8 25.4 26.59
K06P.350x320x15 350 320 15 16
K06P.350x320x16 350 320 16 17
K06P.350x320x22.5 350 320 22.5 23.5
K06P.350x320x26 350 320 26 27
K06P.360x320x20 360 320 20 21
K06P.360x320x28 360 320 28 29
K06P.360x330x20 360 330 20 21
K06P.377x350x15 377 350 15 16
K06P.380x328x30 380 328 30 31
K06P.380x350x22 380 350 22 23
K06P.390x350x35 390 350 35 36
K06P.390x360x22 390 360 22 23
K06P.400x370x20 400 370 20 21
K06P.400x370x22 400 370 22 23
K06P.400x370x26 400 370 26 27
K06P.410x380x22 410 380 22 23
K06P.420x390x22 420 390 22 23
K06P.425x400x22 425 400 22 23
K06P.430x400x20 430 400 20 21
K06P.430x400x22 430 400 22 23
K06P.430x400x25 430 400 25 26
K06P.445x401x28 445 401 28 29
K06P.450x400x40 450 400 40 42
K06P.450x410x20 450 410 20 21
K06P.450x420x20 450 420 20 21
K06P.450x420x22 450 420 22 23
K06P.457x425x24 457 425 24 25
K06P.470x430x28 470 430 28 29
K06P.480x450x20 480 450 20 21
K06P.490x450x34 490 450 34 35
K06P.500x450x25 500 450 25 26
K06P.500x470x25 500 470 25 26
K06P.510x470x28 510 470 28 29
K06P.520x500x10 520 500 10 11
K06P.525x500x22 525 500 22 23
K06P.530x490x28 530 490 28 29
K06P.530x500x18 530 500 18 19
K06P.540x500x34 540 500 34 35
K06P.550x500x38 550 500 38 40
K06P.550x520x25 550 520 25 26
K06P.565x530x25 565 530 25 26
K06P.570x540x15 570 540 15 16
K06P.570x550x15 570 550 15 16
K06P.578x545x16.5 578 545 16.5 17.5
K06P.580x540x16 580 540 16 17
K06P.580x550x22.7 580 550 22.7 23.81
K06P.590x550x28 590 550 28 29
K06P.590x550x35 590 550 35 36
K06P.650x610x22 650 610 22 23
K06P.650x620x25 650 620 25 26
K06P.700x660x20 700 660 20 21
K06P.740x700x28 740 700 28 29
K06P.750x700x32 750 700 32 53
K06P.755.65x709.61x28.57 755.65 709.61 28.57 30.56
K06P.760x720x20 760 720 20 21
K06P.800x750x30 800 750 30 31
K06P.1016x965.2x19.05 1016 965.2 19.05 20.65


CHÍNH SÁCH BẢO MẬT

CHÍNH SÁCH CHUNG

Công ty TNHH Goăng phớt Việt Áo- GPVA Co., Ltd. Số ĐKKD 0105834316 cấp ngày 26/03/2012.
Địa chỉ VP: 192 ngõ Xã Đàn II Phường Nam Đồng Quận Đống Đa - TP.Hà Nội
Điện thoại : 024 3577 2916 Di động: 09 0354 7800. Email: admin@gpva.vn

Tổng truy cập:    1308842
